1/4 Copper Pipe

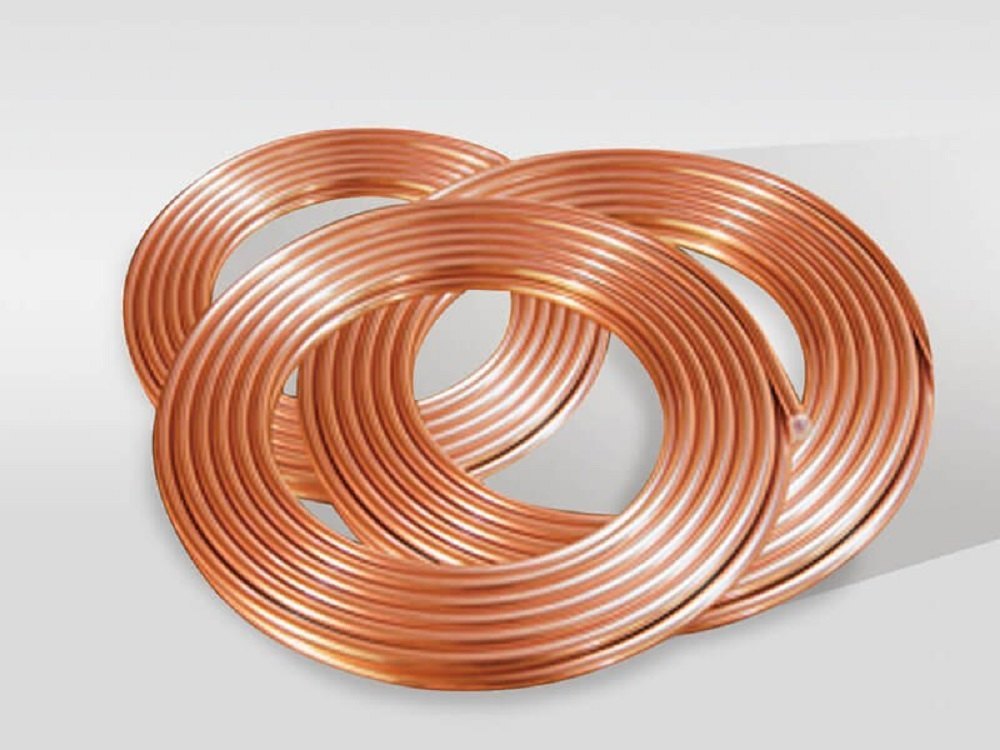

1/4 copper pipe is a small-diameter piping solution commonly used in refrigeration, HVAC systems, instrumentation, and precision fluid transport applications. Known for its excellent corrosion resistance, flexibility, and thermal conductivity, this pipe size is ideal for systems requiring controlled flow and compact installation.
Its lightweight nature and ease of handling make it a preferred choice for both residential and industrial applications where space and precision are critical.
What is 1/4 Copper Pipe?
1/4 copper pipe refers to a copper pipe with a nominal diameter of 1/4 inch. It is typically available as soft or hard drawn tubing and is used in applications requiring small flow capacities and precise control.
This pipe size is widely used in refrigeration lines, instrumentation systems, and gas supply for small-scale equipment.
Standard Dimensions
| Type | Outside Diameter (mm) | Wall Thickness (mm) | Typical Application |
|---|---|---|---|
| Standard Tubing | 6.35 | 0.76 | Refrigeration systems |
| Heavy Wall | 6.35 | 1.00 | Industrial & instrumentation |
Key Properties
- Excellent corrosion resistance
- High thermal conductivity
- Flexible and easy to install
- Leak-proof performance
- Long service life
Copper Grades Used
- C12200 – Phosphorus-deoxidized copper (DHP)
- C10100 – Oxygen-free copper (OFHC)
Applicable Standards
- ASTM B280 – Copper tubing for HVAC and refrigeration
- ASTM B68 – Seamless copper tubes
- EN 12735 – Copper tubes for refrigeration
Applications of 1/4 Copper Pipe
Refrigeration Systems
- Refrigerant lines
- Cooling units
HVAC Systems
- Air conditioning systems
Instrumentation
- Precision fluid control systems
Gas Systems
- Small gas supply lines
Advantages
- Compact and lightweight
- Easy to bend and install
- High efficiency in heat transfer
- Reliable performance
Installation Methods
- Soldering
- Brazing
- Flare fittings
- Compression fittings
Quality Control
- Dimensional inspection
- Pressure testing
- Chemical composition analysis
- Eddy current testing
Conclusion
1/4 copper pipe is a critical component in precision piping systems, offering excellent performance, durability, and flexibility. Its widespread use in refrigeration, HVAC, and instrumentation highlights its importance in modern engineering applications.
With proper selection and installation, 1/4 copper pipe ensures long-term reliability and efficient system operation.
