3/4 Copper Pipe Insulation – Thickness, Materials and Applications
3/4 copper pipe insulation is widely used in plumbing, HVAC, hot water and chilled water systems to reduce heat loss, prevent condensation and protect copper piping from environmental exposure. The 3/4 inch copper pipe size is one of the most common diameters used in residential, commercial and industrial installations, making proper insulation selection critical for energy efficiency and system longevity.
Whether used for hot water supply lines, air conditioning refrigerant piping or hydronic heating systems, insulating 3/4 copper pipes ensures stable temperature control, reduced operating costs and improved system performance.
Why Insulate a 3/4 Copper Pipe?
Copper pipes readily transfer heat due to their high thermal conductivity. While this is beneficial for heat exchangers, it causes unwanted heat loss or gain in distribution piping if left uninsulated. A 3/4 copper pipe carrying hot water or chilled fluid will quickly exchange heat with the surrounding air, reducing system efficiency.
Insulation acts as a thermal barrier, maintaining fluid temperature and protecting the pipe surface from condensation and corrosion.
Key Benefits of 3/4 Copper Pipe Insulation
- Reduces heat loss in hot water and heating systems
- Prevents condensation on chilled water and AC lines
- Improves energy efficiency and lowers utility costs
- Protects copper pipes from mechanical damage
- Enhances safety by reducing surface temperatures
Common Insulation Materials for 3/4 Copper Pipes

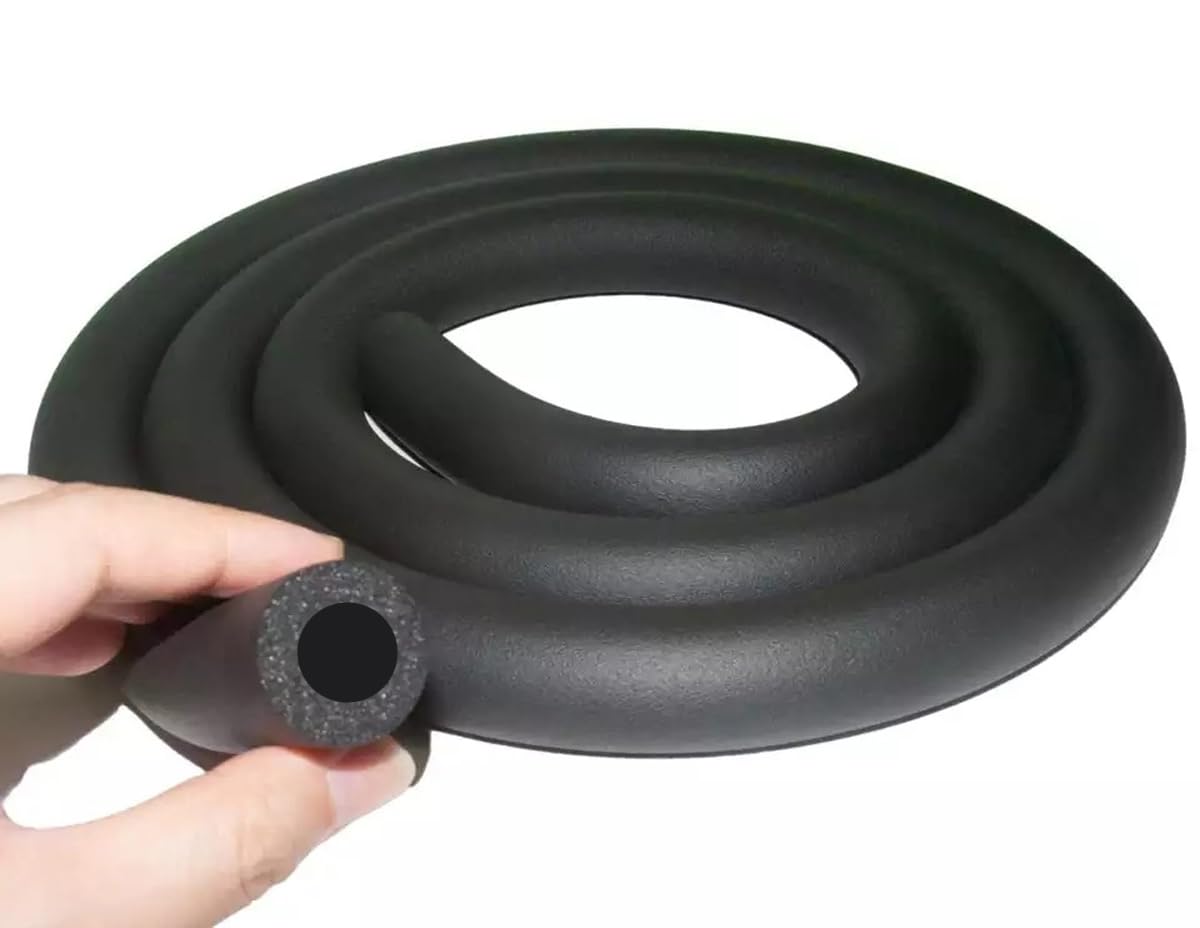

Elastomeric Rubber Insulation
Elastomeric rubber insulation is one of the most effective materials for insulating 3/4 copper pipes. Its closed-cell structure provides excellent thermal resistance and acts as a built-in vapor barrier, preventing moisture ingress. It is widely used in HVAC, chilled water and hot water applications.
Polyethylene (PE) Foam Insulation
PE foam insulation is a cost-effective option commonly used for residential hot water lines. It provides moderate thermal protection and is easy to install, making it suitable for standard plumbing systems.
Fiberglass Pipe Insulation
Fiberglass insulation offers high thermal resistance and is typically used in commercial and industrial systems. It is supplied with an external jacket to protect against moisture and mechanical damage.
Pre-Slit Foam Insulation Tubes
Pre-slit foam tubes designed specifically for 3/4 copper pipes allow quick installation and uniform coverage. These are commonly used in retrofit projects and residential plumbing.
Recommended Insulation Thickness for 3/4 Copper Pipe
The insulation thickness for a 3/4 copper pipe depends on application, temperature and ambient conditions. Typical recommendations include:
| Application | Recommended Thickness |
|---|---|
| Residential hot water | 6 mm – 9 mm |
| HVAC chilled water | 9 mm – 13 mm |
| Commercial plumbing | 13 mm |
| Industrial systems | 19 mm and above |
Thicker insulation provides better energy savings and condensation control, especially in humid or exposed environments.
Standards and Compliance
Insulation materials used on 3/4 copper pipes should comply with relevant international standards:
- ASTM C534 – Elastomeric insulation materials
- ASTM C547 – Closed-cell insulation
- EN 14304 – Thermal insulation for building services
- ASHRAE guidelines – HVAC insulation design
The copper pipe itself typically conforms to ASTM B88 or equivalent standards for plumbing and HVAC service.
Installation Best Practices
Proper installation of 3/4 copper pipe insulation is essential to achieve maximum performance. Insulation should be installed continuously along the pipe length, with all seams sealed to prevent air and moisture penetration.
In outdoor or exposed locations, insulation should be protected with UV-resistant cladding or protective tape to prevent degradation.
Applications of 3/4 Copper Pipe Insulation
Plumbing & Hot Water Systems
- Domestic hot water supply lines
- Solar water heating systems
HVAC & Chilled Water Systems
- Chilled water distribution
- Air conditioning piping
Commercial & Industrial Systems
- Process water piping
- Hydronic heating systems
Advantages of Proper Insulation
- Reduced energy consumption
- Improved temperature stability
- Lower maintenance costs
- Extended pipe service life
- Improved system safety and efficiency
Quality Control and Material Selection
High-quality insulation for 3/4 copper pipes is manufactured under controlled conditions to ensure uniform density, consistent thickness and long-term thermal performance. Selecting certified insulation materials ensures compliance with building codes and energy standards.
Conclusion
3/4 copper pipe insulation is a critical component for efficient plumbing, HVAC and industrial piping systems. By selecting the appropriate insulation material and thickness, system operators can significantly reduce energy losses, prevent condensation and protect copper piping infrastructure.
Whether for residential hot water lines or commercial HVAC installations, properly insulated 3/4 copper pipes deliver long-term performance, safety and energy efficiency.
