3/4 Inch Copper Pipe Insulation – Thickness, Materials and Applications
3/4 inch copper pipe insulation is essential for maintaining thermal efficiency, preventing condensation and protecting piping systems used in plumbing, HVAC and industrial applications. The 3/4 inch copper pipe size is one of the most commonly installed diameters in residential and commercial buildings, making proper insulation selection critical for energy savings and long-term system reliability.
Copper’s high thermal conductivity makes it excellent for heat transfer applications, but without insulation, it can lead to unwanted heat loss or heat gain in distribution lines. Insulating 3/4 inch copper pipes ensures stable temperature control and improved system performance.
Why Insulate 3/4 Inch Copper Pipes?
Uninsulated copper pipes carrying hot water, chilled water or refrigerant rapidly exchange heat with the surrounding environment. In hot water systems, this results in energy loss and longer waiting times at fixtures. In chilled water or air-conditioning systems, it leads to condensation, moisture damage and reduced cooling efficiency.
Insulation creates a thermal barrier that preserves fluid temperature and protects the copper pipe surface from environmental exposure.
Key Benefits of 3/4 Inch Copper Pipe Insulation
- Reduces heat loss in hot water and heating systems
- Prevents condensation on chilled water and HVAC lines
- Improves overall energy efficiency
- Protects copper pipes from corrosion and mechanical damage
- Enhances safety by lowering surface temperatures
Common Insulation Materials for 3/4 Inch Copper Pipes
Elastomeric Rubber Insulation

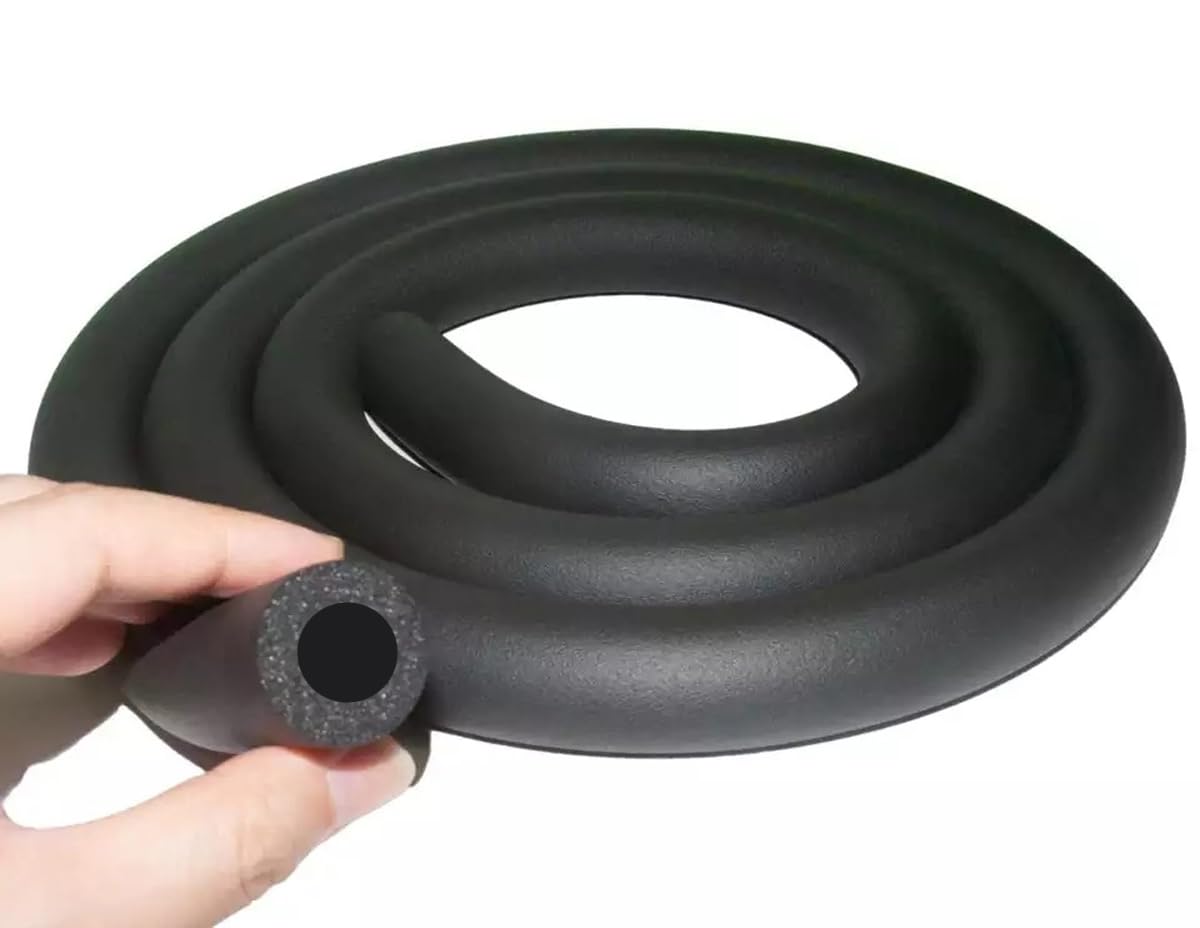

Elastomeric rubber insulation is widely considered the best insulation material for 3/4 inch copper pipes. Its closed-cell structure provides excellent thermal resistance and acts as an effective vapor barrier. It is flexible, durable and resistant to mold, making it ideal for HVAC, chilled water and hot water applications.
Polyethylene (PE) Foam Insulation
PE foam insulation is a cost-effective option commonly used in residential plumbing systems. It offers moderate thermal protection and is easy to install, making it suitable for standard hot water and cold water lines.
Fiberglass Pipe Insulation
Fiberglass insulation provides high thermal resistance and is typically used in commercial and industrial installations. It is supplied with an external jacket to protect against moisture ingress and mechanical damage.
Pre-Formed Insulation Tubes
Pre-formed insulation tubes designed for 3/4 inch copper pipes ensure uniform coverage and quick installation. These are widely used in retrofit projects and large-scale plumbing installations.
Recommended Insulation Thickness for 3/4 Inch Copper Pipe
The appropriate insulation thickness depends on application, operating temperature and ambient conditions. Typical recommendations include:
| Application | Recommended Insulation Thickness |
|---|---|
| Residential hot water lines | 6 mm – 9 mm |
| HVAC chilled water piping | 9 mm – 13 mm |
| Commercial plumbing systems | 13 mm |
| Industrial and exposed piping | 19 mm or more |
Thicker insulation improves energy efficiency and provides better condensation control, especially in humid or outdoor environments.
Standards and Compliance
Insulation materials for 3/4 inch copper pipes should comply with recognized international standards:
- ASTM C534 – Elastomeric insulation materials
- ASTM C547 – Flexible closed-cell insulation
- EN 14304 – Thermal insulation products for building services
- ASHRAE guidelines – HVAC insulation design
Copper pipes are typically manufactured to ASTM B88 or equivalent standards for plumbing and HVAC applications.
Installation Best Practices
Proper installation is essential to achieve the full benefits of 3/4 inch copper pipe insulation. Insulation should be installed continuously along the entire pipe length, including fittings and bends, with all seams sealed to prevent air infiltration.
For outdoor or exposed installations, insulation should be protected with UV-resistant jacketing or protective cladding to prevent degradation.
Applications of 3/4 Inch Copper Pipe Insulation
Plumbing & Hot Water Systems
- Domestic hot water distribution
- Solar water heating systems
HVAC & Chilled Water Systems
- Chilled water distribution lines
- Air-conditioning piping
Commercial & Industrial Systems
- Process water piping
- Hydronic heating systems
Advantages of Proper Insulation
- Lower energy consumption and operating costs
- Improved temperature stability
- Reduced maintenance and repair issues
- Extended service life of copper piping
- Enhanced system safety and efficiency
Quality Control and Material Selection
High-quality insulation products are manufactured under controlled conditions to ensure consistent density, thickness and long-term thermal performance. Selecting certified insulation materials ensures compliance with building codes and energy efficiency requirements.
Conclusion
3/4 inch copper pipe insulation is a critical component for efficient plumbing, HVAC and industrial piping systems. By selecting the right insulation material and thickness, system operators can significantly reduce heat loss, prevent condensation and protect copper piping infrastructure.
Whether used in residential hot water lines or large commercial HVAC installations, properly insulated 3/4 inch copper pipes deliver long-term energy savings, safety and reliability.
