3 4 copper insulation for HVAC, Plumbing and Industrial Systems
3 4 copper insulation is specifically designed to insulate copper pipes with a nominal diameter of 3/4 inch. These pipes are commonly used in HVAC refrigerant lines, chilled water systems, hot water plumbing and light industrial piping. Because copper has high thermal conductivity, proper insulation is essential to control heat transfer and maintain system efficiency.
In modern residential, commercial and industrial installations, 3 4 copper insulation is a standard requirement for energy conservation, condensation prevention and long-term system reliability.
What is 3 4 copper insulation?

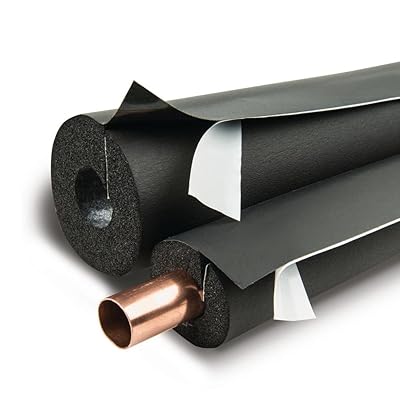

3 4 copper insulation refers to thermal insulation materials manufactured to fit tightly around 3/4 inch copper pipes. The insulation forms a continuous thermal barrier that minimizes heat loss from hot lines and heat gain on cold or chilled lines.
It is widely used in air-conditioning systems, plumbing networks and industrial utility piping.
Why 3 4 copper insulation is Important
Uninsulated 3/4 inch copper pipes can lead to significant energy loss and condensation problems. In chilled applications, moisture accumulation can damage building interiors and promote corrosion. In hot water systems, heat loss increases energy consumption. 3 4 copper insulation effectively eliminates these issues.
Key Functions of 3 4 copper insulation
- Reduces heat loss and unwanted heat gain
- Prevents surface condensation and moisture damage
- Improves HVAC and plumbing system efficiency
- Protects copper pipes from external corrosion
- Enhances safety by controlling surface temperatures
Materials Used for 3 4 copper insulation
Elastomeric Rubber Insulation
Elastomeric rubber is the most common material used for 3 4 copper insulation in HVAC and refrigeration systems. Its closed-cell structure provides excellent thermal resistance and vapor barrier properties.
Polyethylene (PE) Foam Insulation
PE foam insulation is widely used for 3 4 copper insulation in residential and light commercial plumbing systems due to its ease of installation and cost-effectiveness.
Cross-Linked Polyethylene (XLPE)
XLPE insulation offers improved durability and temperature resistance, making it suitable for exposed and commercial 3 4 copper insulation applications.
Fiberglass Insulation with Jacket
Fiberglass insulation is used where 3 4 copper insulation must withstand higher operating temperatures, such as industrial hot water and process piping.
Recommended Thickness for 3 4 copper insulation
| Application | Recommended Thickness |
|---|---|
| Residential hot water lines | 9–13 mm |
| HVAC refrigerant lines | 13 mm |
| Commercial chilled water systems | 13–19 mm |
| Industrial process piping | 19 mm and above |
Standards Applicable to 3 4 copper insulation
3 4 copper insulation materials should comply with recognized international standards:
- ASTM C534 – Elastomeric insulation materials
- ASTM C547 – Mineral fiber insulation
- EN 14304 – Thermal insulation for building services
- ASHRAE guidelines – HVAC insulation practices
Copper pipes insulated using these materials typically conform to ASTM B88 or ASTM B280 standards.
Installation Best Practices for 3 4 copper insulation
To achieve optimal performance, 3 4 copper insulation must be installed with full coverage along the entire pipe length. All joints and seams should be sealed to prevent vapor ingress and condensation.
For outdoor installations, UV-resistant jackets or protective coverings are recommended.
Applications of 3 4 copper insulation
HVAC & Refrigeration
- Air conditioner refrigerant lines
- VRF and VRV systems
Plumbing & Hot Water Systems
- Hot water distribution networks
- Solar water heating systems
Industrial & Utility Piping
- Process heating and cooling lines
- Power plant utility piping
Advantages of Using 3 4 copper insulation
- Reduced energy losses and lower operating costs
- Effective condensation prevention
- Extended service life of copper piping
- Improved system performance and reliability
- Compliance with energy efficiency regulations
Quality Control for 3 4 copper insulation
High-quality 3 4 copper insulation is tested for thermal conductivity, vapor permeability, fire behavior and long-term durability. Consistent thickness and density ensure reliable performance over the system lifecycle.
Conclusion
3 4 copper insulation is an essential component for HVAC, plumbing and industrial piping systems using 3/4 inch copper pipes. By controlling heat transfer and preventing condensation, it significantly improves energy efficiency and system longevity.
When correctly selected and professionally installed, 3 4 copper insulation delivers dependable performance, safety and long-term value across residential, commercial and industrial applications.
