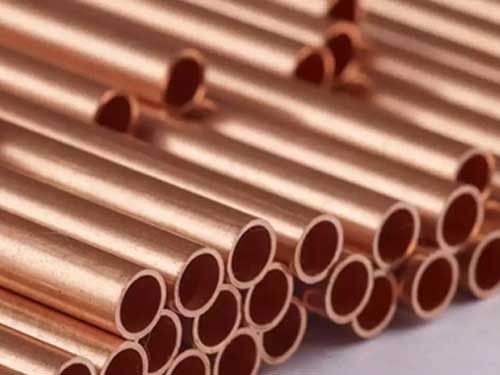

ASTM B88 Type K Copper Pipe – Complete Specification Guide
ASTM B88 Type K copper pipe represents the heaviest wall thickness category under the ASTM B88 standard. It is specifically designed for applications requiring maximum pressure resistance, durability and long-term safety. Among Type K, Type L and Type M copper pipes, Type K offers the highest strength and reliability.
Because of these characteristics, ASTM B88 Type K copper is widely used in underground water services, gas distribution, HVAC utilities and industrial piping systems.
What is ASTM B88 Type K Copper?
ASTM B88 Type K copper refers to seamless copper water tube manufactured in accordance with ASTM B88 specifications, featuring the thickest wall among standard copper pipe classifications. This increased wall thickness allows the pipe to withstand higher internal pressures and harsh installation conditions.
It is supplied in hard-drawn straight lengths and annealed coils depending on application requirements.
Why Choose ASTM B88 Type K Copper?
Critical piping systems demand materials with high safety margins and long service life. ASTM B88 Type K copper provides superior pressure performance, excellent corrosion resistance and proven durability, making it suitable for both above-ground and underground installations.
Key Advantages of ASTM B88 Type K Copper
- Highest wall thickness among ASTM B88 types
- Superior pressure handling capability
- Excellent corrosion resistance
- Approved for underground installations
- Long service life with minimal maintenance
Copper Grade Used in ASTM B88 Type K Copper
ASTM B88 Type K copper pipes are manufactured using high-purity copper grades:
- C12200 – Phosphorus-deoxidized copper
This grade provides excellent formability, resistance to embrittlement and reliable brazing or flaring characteristics.
Dimensions of ASTM B88 Type K Copper
| Nominal Size | Outside Diameter (mm) | Wall Thickness (mm) |
|---|---|---|
| 1/2 inch | 15.88 | 1.65 |
| 3/4 inch | 22.23 | 1.83 |
| 1 inch | 28.58 | 2.11 |
| 2 inch | 54.00 | 2.77 |
Pressure Performance of ASTM B88 Type K Copper
Due to its thick wall construction, ASTM B88 Type K copper provides the highest allowable working pressure among standard copper water tubes. Pressure ratings vary with pipe size and operating temperature but consistently exceed those of Type L and Type M pipes.
This makes Type K ideal for high-pressure water mains, gas service lines and industrial utility systems.
Manufacturing Process of ASTM B88 Type K Copper
ASTM B88 Type K copper pipes are produced through seamless extrusion followed by cold drawing to achieve precise dimensions and wall thickness. Pipes are then annealed or hard-drawn based on supply requirements.
Strict quality control ensures dimensional accuracy, surface quality and pressure integrity.
Joining Methods for ASTM B88 Type K Copper
Approved joining methods for ASTM B88 Type K copper include brazing, flaring and press-fit systems. For gas applications, brazing or flared joints are typically required by code.
Proper jointing ensures leak-free and long-lasting installations.
Applications of ASTM B88 Type K Copper
Water Supply Systems
- Underground water service lines
- Main potable water distribution
Gas Distribution
- LPG and propane pipelines
- Natural gas service lines
HVAC & Industrial Utilities
- High-pressure utility piping
- Process and service lines
Standards and Code Compliance for ASTM B88 Type K Copper
- ASTM B88 – Seamless copper water tube
- NSF/ANSI 61 – Potable water compliance
- Local plumbing and gas codes
Quality Control and Testing of ASTM B88 Type K Copper
Manufacturers conduct rigorous testing on ASTM B88 Type K copper pipes, including chemical composition analysis, dimensional inspection, eddy current testing and pressure testing to ensure full compliance with the standard.
Conclusion
ASTM B88 Type K copper pipe is the strongest and most reliable option among standard copper water tubes. Its thick wall design, high pressure capability and corrosion resistance make it ideal for critical plumbing, gas and industrial applications.
When manufactured and installed in accordance with ASTM requirements, ASTM B88 Type K copper delivers decades of safe, efficient and maintenance-free service.
