Copper LP Gas Line for Safe and Reliable LPG Distribution
Copper LP gas line systems are widely used for liquefied petroleum gas (LPG) distribution in residential, commercial and light industrial installations. Copper offers excellent corrosion resistance, pressure handling capability and long service life, making it a preferred material for propane and butane gas piping when installed according to applicable codes and standards.
Due to its flexibility and ease of installation, copper LP gas line piping is commonly selected for indoor gas distribution, appliance connections and regulated outdoor LPG systems.
What is Copper LP Gas Line?

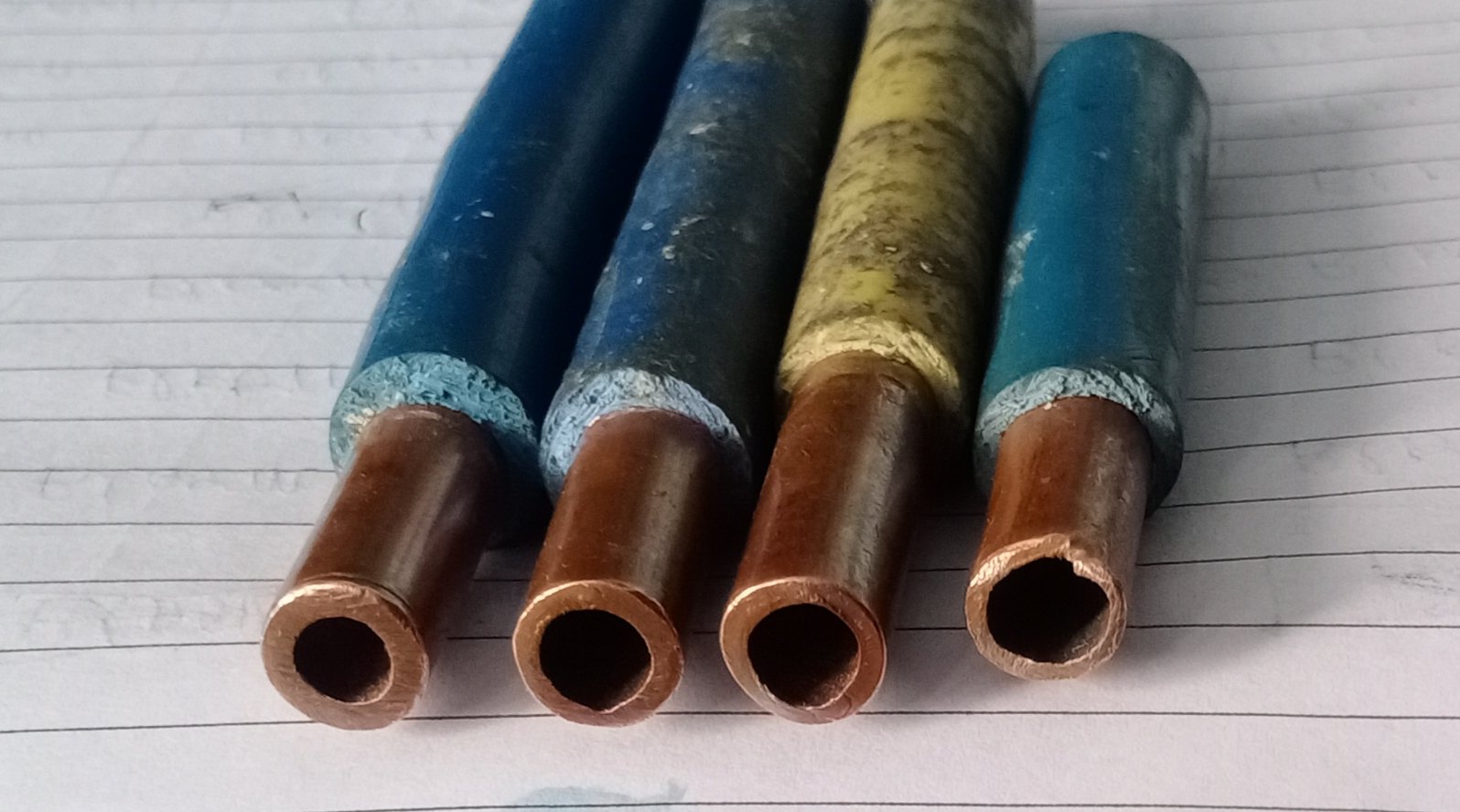

A copper LP gas line is a copper tube or pipe specifically approved for conveying liquefied petroleum gas, including propane and butane. These lines are manufactured from high-purity copper and supplied in straight lengths or coils to allow continuous runs with minimal joints.
Properly specified and installed, copper LP gas line systems deliver safe, leak-free gas transport over long periods.
Why Use Copper LP Gas Line for LPG Systems?
Copper has a proven history in gas distribution applications. Unlike steel, it does not rust internally and offers excellent resistance to many environmental conditions. The use of copper LP gas line ensures reliable gas flow, ease of maintenance and long-term safety when installed correctly.
Key Advantages of Copper LP Gas Line
- Excellent corrosion resistance
- High pressure handling capability
- Smooth internal bore for consistent gas flow
- Ease of bending and installation
- Long service life with minimal maintenance
Material Grades Used in Copper LP Gas Line
Copper LP gas line systems are typically manufactured from high-quality copper grades designed for gas service:
- C12200 (Phosphorus-deoxidized copper)
- C10200 (Oxygen-free copper, where specified)
These materials provide excellent ductility, strength and resistance to hydrogen embrittlement.
Standards Applicable to Copper LP Gas Line
To ensure safety and compliance, copper LP gas line products must conform to recognized international standards:
- ASTM B88 – Seamless copper water and gas tube
- ASTM B280 – ACR copper tubing (where permitted)
- EN 1057 – Copper and copper alloy tubes for gas
- NFPA 54 / NFPA 58 – Fuel gas and LPG installation codes
- IS 1545 – Copper tubes for gas and plumbing (India)
Sizes and Wall Thickness of Copper LP Gas Line
| Nominal Size (in) | Outside Diameter (mm) | Typical Application |
|---|---|---|
| 3/8 | 9.52 | Small appliance connections |
| 1/2 | 12.70 | Residential LPG distribution |
| 3/4 | 19.05 | Commercial LPG systems |
| 1 | 25.40 | High-demand gas supply lines |
Wall thickness selection for copper LP gas line depends on operating pressure, installation method and applicable code requirements.
Manufacturing Process of Copper LP Gas Line
Copper LP gas line tubing is produced through hot extrusion followed by cold drawing to achieve precise dimensions and mechanical properties. Tubes are annealed to provide the required ductility for bending and forming during installation.
Each production batch undergoes strict quality control to ensure dimensional accuracy, material integrity and cleanliness suitable for gas service.
Installation Best Practices for Copper LP Gas Line
Correct installation is critical for safe operation of a copper LP gas line. Tubing should be properly supported, protected from mechanical damage and installed with approved fittings.
- Use approved flared or brazed joints only
- Avoid soft soldering for gas connections
- Protect tubing from physical impact and abrasion
- Follow local codes for underground or concealed installations
Applications of Copper LP Gas Line
Residential LPG Systems
- Cooking gas distribution
- Domestic water heaters
- Small space heating systems
Commercial Installations
- Restaurants and commercial kitchens
- Hotels and hospitality facilities
- Laboratories and institutional buildings
Industrial & Utility Use
- Light industrial LPG supply lines
- Backup fuel systems
- Process heating applications
Safety and Compliance for Copper LP Gas Line
Safety is paramount when working with LPG systems. Copper LP gas line installations must be pressure tested, leak checked and inspected according to applicable regulations. Proper labeling and system documentation further enhance safety and traceability.
Quality Control and Testing of Copper LP Gas Line
Manufacturers subject copper LP gas line tubing to rigorous testing including chemical composition analysis, eddy current testing, dimensional inspection and pressure testing. These measures ensure reliable performance and compliance with international standards.
Conclusion
Copper LP gas line systems provide a safe, durable and efficient solution for LPG distribution across residential, commercial and light industrial applications. With excellent corrosion resistance, pressure capability and ease of installation, copper remains a trusted material for gas piping when installed according to applicable standards and codes.
When manufactured under strict quality control and installed using approved practices, copper LP gas line piping delivers long-term reliability and safety in LPG infrastructure worldwide.
