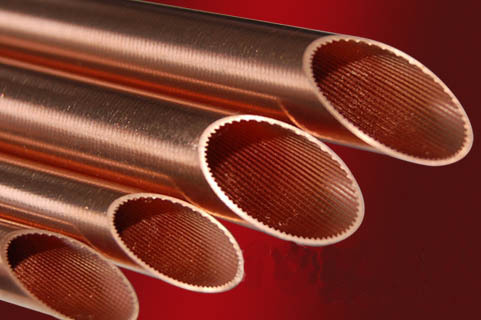

Inner Grooved Copper Tubes for High Efficiency Heat Transfer
Inner grooved copper tubes are specially engineered copper tubes designed to enhance heat transfer performance in air conditioning, refrigeration and heat exchanger systems. By incorporating precisely formed internal grooves, these tubes significantly increase the internal surface area and turbulence of the refrigerant flow.
As energy efficiency standards become more stringent, inner grooved copper tubes have become a critical component in modern high-efficiency HVAC and refrigeration equipment.
What Are Inner Grooved Copper Tubes?
Inner grooved copper tubes are seamless copper tubes featuring micro-fins or grooves formed on the internal surface. These grooves promote improved refrigerant distribution, reduced thermal resistance and enhanced heat transfer compared to plain copper tubes.
The external surface remains smooth, allowing easy integration into coils and heat exchangers.
Why Use Inner Grooved Copper Tubes?
In heat transfer applications, efficiency directly impacts energy consumption and system performance. Inner grooved copper tubes improve heat exchange efficiency without increasing tube diameter or system size, making them ideal for compact and energy-efficient equipment.
Key Benefits of Inner Grooved Copper Tubes
- Higher heat transfer coefficient
- Improved refrigerant flow characteristics
- Reduced system energy consumption
- Compact heat exchanger design
- Compatibility with modern refrigerants
Copper Grades Used in Inner Grooved Copper Tubes
Inner grooved copper tubes are manufactured using high-purity copper grades:
- C12200 – Phosphorus-deoxidized copper
- C10200 – Oxygen-free copper (on request)
These grades ensure excellent thermal conductivity, corrosion resistance and formability.
Manufacturing Process of Inner Grooved Copper Tubes
The production of inner grooved copper tubes begins with seamless copper tube extrusion followed by cold drawing. Internal grooves are formed using precision mandrels or rolling processes to achieve consistent fin geometry.
After grooving, tubes are annealed, cleaned and inspected to ensure dimensional accuracy and internal cleanliness.
Groove Geometry in Inner Grooved Copper Tubes
The performance of inner grooved copper tubes depends heavily on groove design. Parameters such as groove height, helix angle and groove density are optimized to balance pressure drop and heat transfer efficiency.
Manufacturers offer different groove patterns tailored to specific refrigerants and operating conditions.
Applicable Standards for Inner Grooved Copper Tubes
Inner grooved copper tubes are manufactured in compliance with recognized international standards:
- ASTM B280 – Copper tubing for refrigeration
- EN 12735 – Copper tubes for refrigeration and air conditioning
- JIS H3300 – Japanese copper tube standard
- IS 2501 – Copper tubes for air conditioning
Sizes and Dimensions of Inner Grooved Copper Tubes
| Nominal Size | Outside Diameter (mm) | Typical Application |
|---|---|---|
| 1/4 inch | 6.35 | Residential AC evaporators |
| 3/8 inch | 9.52 | Split and VRF systems |
| 1/2 inch | 15.88 | Commercial HVAC coils |
| 5/8 inch | 15.88 | Heat exchangers |
Compatibility with Refrigerants in Inner Grooved Copper Tubes
Inner grooved copper tubes are compatible with a wide range of refrigerants including R22, R134a, R410A, R32 and other modern low-GWP refrigerants.
Their enhanced internal surface improves oil return and refrigerant distribution in high-efficiency systems.
Applications of Inner Grooved Copper Tubes
Air Conditioning
- Split air conditioners
- VRF and VRV systems
Refrigeration
- Commercial refrigeration units
- Cold storage systems
Heat Exchangers
- Evaporators and condensers
- Heat pump systems
Quality Control for Inner Grooved Copper Tubes
Manufacturers perform rigorous quality checks on inner grooved copper tubes including chemical composition analysis, dimensional inspection, groove geometry verification, eddy current testing and cleanliness control.
Advantages Over Plain Tubes Using Inner Grooved Copper Tubes
Compared to plain copper tubes, inner grooved copper tubes offer significantly higher heat transfer efficiency, allowing designers to reduce material usage and system size while maintaining or improving performance.
Conclusion
Inner grooved copper tubes are a key enabler of modern high-efficiency HVAC and refrigeration systems. Their advanced internal design delivers superior heat transfer, energy savings and compact system design.
When manufactured to recognized standards and applied correctly, inner grooved copper tubes provide long-term reliability, improved performance and compliance with global energy efficiency requirements.
