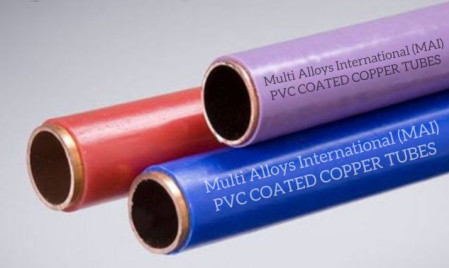

PVC Insulated Copper Tube for HVAC, Gas and Plumbing Systems
PVC insulated copper tube is widely used in modern piping installations where copper tubing requires additional mechanical protection, corrosion resistance and visual identification. The PVC coating acts as an external protective layer while preserving the superior thermal and mechanical properties of copper.
Across HVAC, gas distribution, plumbing and industrial applications, PVC insulated copper tube improves durability, safety and service life in demanding environments.
What is PVC Insulated Copper Tube?
PVC insulated copper tube refers to seamless copper tubing coated with a durable polyvinyl chloride (PVC) layer. The PVC insulation is applied uniformly over the copper surface to protect against external corrosion, abrasion and environmental exposure.
The copper core carries fluids or gases, while the PVC layer serves as a protective and insulating barrier.
Why Use PVC Insulated Copper Tube?
Bare copper tubing can be vulnerable to moisture, aggressive building materials and mechanical damage. PVC insulated copper tube addresses these challenges by providing enhanced protection without compromising copper’s performance.
This makes it particularly suitable for concealed installations and corrosive environments.
Key Advantages of PVC Insulated Copper Tube
- Protection against external corrosion
- Improved resistance to abrasion and impact
- Extended service life
- Easy identification through colored PVC coating
- Reduced maintenance requirements
Copper Grades Used in PVC Insulated Copper Tube
PVC insulated copper tube is typically manufactured using high-purity copper grades:
- C12200 – Phosphorus-deoxidized copper
- C10200 – Oxygen-free copper (special applications)
These grades ensure excellent corrosion resistance, formability and reliable joint performance.
Applicable Standards for PVC Insulated Copper Tube
The copper core of PVC insulated copper tube complies with recognized international standards, including:
- ASTM B88 – Seamless copper tube for water and gas
- ASTM B280 – Copper tubing for refrigeration and gas
- EN 1057 – Copper tubes for water and gas
- EN 12735 – Copper tubes for refrigeration
- IS 1545 – Copper tubes for plumbing and gas
The PVC coating is typically applied in accordance with project-specific or customer-defined specifications.
Sizes and Dimensions of PVC Insulated Copper Tube
| Nominal Size | Outside Diameter (mm) | Typical Application |
|---|---|---|
| 1/4 inch | 6.35 | Refrigeration and control lines |
| 3/8 inch | 9.52 | HVAC refrigerant lines |
| 1/2 inch | 15.88 | Gas and plumbing systems |
| 3/4 inch | 22.23 | Commercial installations |
| 1 inch | 28.58 | Industrial piping |
PVC Coating Characteristics in PVC Insulated Copper Tube
The PVC layer in PVC insulated copper tube is designed to be flexible, impact-resistant and chemically stable. It protects the copper surface from cement, lime, moisture and atmospheric pollutants.
PVC coatings may be supplied in different colors for identification of services such as gas, water or refrigeration.
Manufacturing Process of PVC Insulated Copper Tube
PVC insulated copper tube is manufactured by first producing seamless copper tubing through extrusion and cold drawing. After inspection and cleaning, the PVC coating is applied using extrusion or dip-coating processes.
The finished product undergoes dimensional inspection and adhesion testing to ensure coating integrity.
Installation Guidelines for PVC Insulated Copper Tube
When installing PVC insulated copper tube, care must be taken to avoid damaging the PVC layer. Cutting and joint preparation should expose only the copper surface required for brazing, flaring or compression fittings.
After jointing, protective sleeves or tapes may be used to restore coating continuity.
Applications of PVC Insulated Copper Tube
HVAC & Refrigeration
- Refrigerant piping
- Chilled water systems
Gas Distribution
- LPG and propane lines
- Natural gas piping
Plumbing Systems
- Hot and cold water distribution
- Concealed pipe installations
Industrial & Marine
- Corrosive environment piping
- Utility and service lines
Quality Control for PVC Insulated Copper Tube
Manufacturers perform rigorous quality checks on PVC insulated copper tube, including chemical analysis of copper, dimensional inspection, coating thickness measurement and adhesion testing.
This ensures compliance with applicable copper standards and long-term coating performance.
Conclusion
PVC insulated copper tube combines the excellent performance of copper with the added protection of a durable PVC coating. This makes it an ideal solution for HVAC, gas, plumbing and industrial applications where external protection and long service life are critical.
When manufactured to recognized standards and installed correctly, PVC insulated copper tube delivers reliable, safe and cost-effective performance across a wide range of operating conditions.
