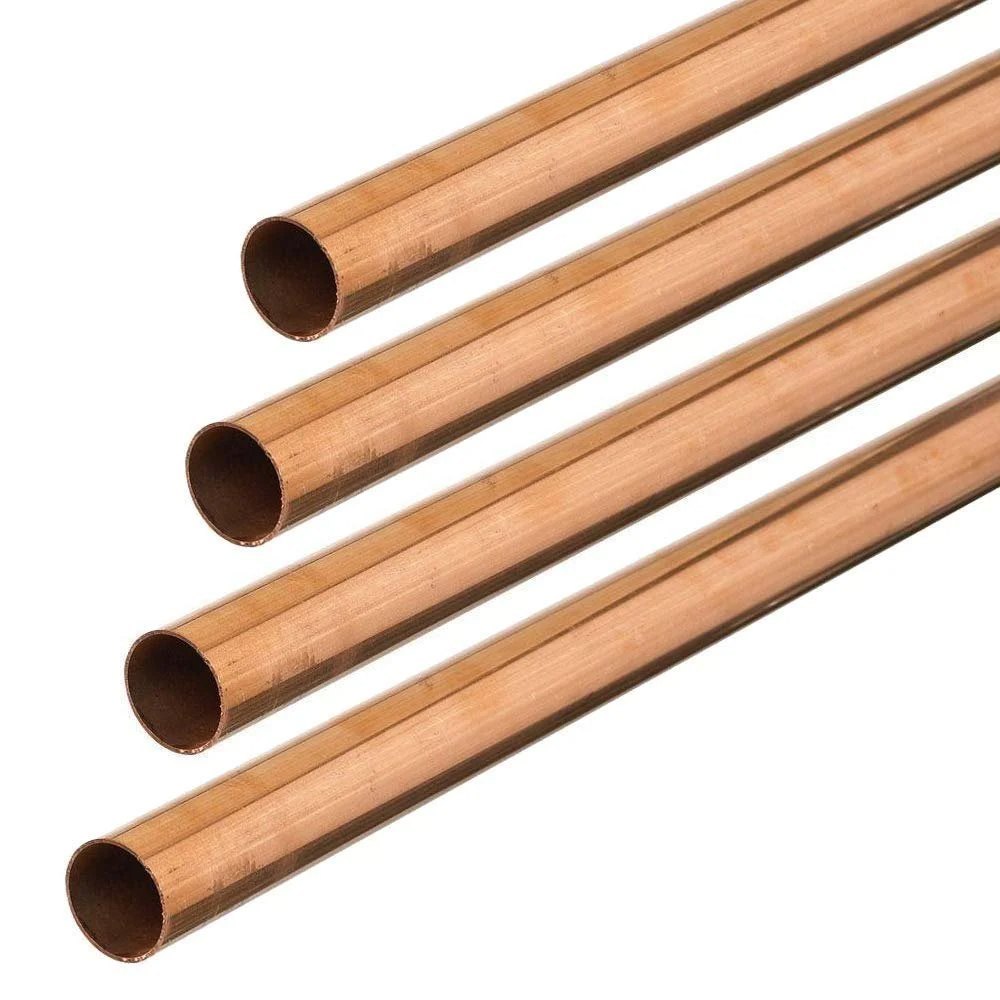

Type K Copper Gas Line for High-Pressure Gas Applications
Type K copper gas line is the heaviest-wall copper tubing used for gas distribution systems. It is specifically selected for applications requiring higher pressure resistance, enhanced mechanical strength and maximum safety margins. Due to its thick wall construction, Type K copper is widely used for propane, LPG and approved natural gas installations, especially in underground or exposed environments.
Among all copper tube types, Type K copper gas line offers the highest pressure rating and longest service life when installed according to applicable codes.
What is Type K Copper Gas Line?
Type K copper gas line refers to seamless copper tubing manufactured with the thickest wall among standard copper pipe classifications. It is produced in both hard-drawn straight lengths and soft-annealed coils, allowing flexibility in installation while maintaining superior pressure capability.
This makes it the preferred choice for critical gas piping systems.
Why Choose Type K Copper Gas Line?
Gas distribution systems demand piping that can safely handle pressure fluctuations, external loads and long-term exposure to environmental conditions. Type K copper gas line meets these demands by providing enhanced wall thickness, reduced risk of mechanical damage and superior durability compared to lighter copper types.
Key Advantages of Type K Copper Gas Line
- Highest pressure rating among copper tubes
- Excellent resistance to corrosion and degradation
- Superior mechanical strength for underground use
- Long service life with minimal maintenance
- Compliance with stringent gas safety codes
Copper Grades Used in Type K Copper Gas Line
Type K copper gas line is typically manufactured from high-purity copper grades suitable for gas service:
- C12200 – Phosphorus-deoxidized copper
- C10200 – Oxygen-free copper (special requirements)
C12200 is most commonly specified due to its excellent brazing, flaring and corrosion resistance characteristics.
Standards Governing Type K Copper Gas Line
To ensure safety and regulatory compliance, Type K copper gas line must conform to recognized standards:
- ASTM B88 – Seamless copper water and gas tube
- EN 1057 – Copper tubes for gas and water
- NFPA 54 – National Fuel Gas Code
- NFPA 58 – Liquefied Petroleum Gas Code
- IS 1545 – Copper tubes for gas applications
Sizes Available for Type K Copper Gas Line
| Nominal Size | Outside Diameter (mm) | Typical Application |
|---|---|---|
| 3/8 inch | 9.52 | Small propane appliances |
| 1/2 inch | 12.70 | Residential gas distribution |
| 3/4 inch | 19.05 | Commercial gas systems |
| 1 inch | 25.40 | High-demand installations |
Pressure Rating of Type K Copper Gas Line
The thick wall construction of Type K copper gas line provides the highest pressure rating among copper pipe types. Pressure capacity depends on pipe size and operating temperature, but Type K is suitable for higher-pressure propane and LPG systems as well as buried installations.
Designers must always consult ASTM pressure tables and local codes when specifying gas piping.
Manufacturing Process of Type K Copper Gas Line
Type K copper gas line is produced through seamless extrusion followed by cold drawing to achieve precise dimensions and mechanical properties. Pipes are supplied either annealed for flexibility or hard-drawn for straight-line installations.
Each production batch undergoes chemical composition analysis, dimensional inspection and non-destructive testing.
Installation Best Practices for Type K Copper Gas Line
Safe installation is critical when working with Type K copper gas line. Only approved joining methods should be used.
- Use flared or brazed joints only
- Do not use soft solder for gas service
- Provide mechanical protection for exposed piping
- Conduct pressure and leak testing after installation
Applications of Type K Copper Gas Line
Residential Gas Systems
- Propane and LPG supply lines
- Water heaters and cooking appliances
Commercial Installations
- Restaurants and commercial kitchens
- Hotels and institutional facilities
Underground and Industrial Use
- Buried gas pipelines
- Industrial fuel gas systems
Safety and Compliance for Type K Copper Gas Line
Type K copper gas line installations must strictly follow local regulations and fuel gas codes. Proper inspection, certification and documentation are essential to ensure long-term safety and compliance.
Quality Control and Testing of Type K Copper Gas Line
Manufacturers perform rigorous testing on Type K copper gas line including chemical composition verification, eddy current testing, dimensional checks and pressure testing to ensure consistent quality and performance.
Conclusion
Type K copper gas line represents the highest safety and performance standard among copper gas piping solutions. Its thick wall construction, superior pressure capability and long service life make it ideal for propane, LPG and approved natural gas applications.
When manufactured to recognized standards and installed using approved practices, Type K copper gas line delivers unmatched reliability, safety and durability in critical gas distribution systems.
