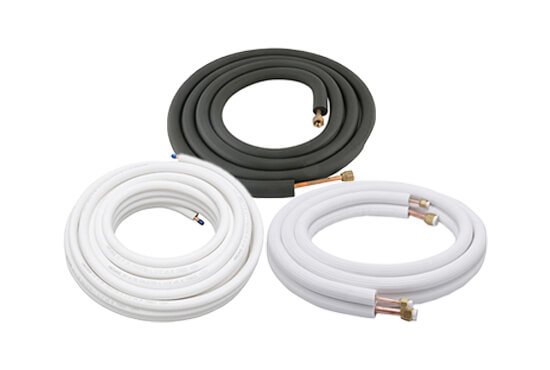

AC copper pipe insulation for air conditioning refrigerant lines in HVAC systems

AC Copper Pipe Insulation – Types, Materials and HVAC Performance Guide

AC copper pipe insulation is a critical component of modern air conditioning and HVAC systems. Insulation applied over copper refrigerant pipes plays a vital role in maintaining system efficiency, preventing energy losses, controlling condensation and protecting piping from environmental damage. Without proper insulation, even high-quality copper piping can suffer from performance degradation and reduced service life.

In residential split AC units, VRF and VRV systems, commercial chillers and industrial HVAC installations, insulated copper pipes ensure stable refrigerant temperatures and reliable long-term operation. This guide provides a comprehensive overview of AC copper pipe insulation, including insulation materials, thickness selection, standards and applications.

Why AC Copper Pipe Insulation is Essential

Copper pipes used in air conditioning systems carry refrigerant at temperatures significantly different from ambient conditions. Without insulation, heat gain or heat loss occurs rapidly, reducing system efficiency and increasing energy consumption.

In addition, moisture condensation on cold suction lines can lead to water dripping, corrosion, mold growth and damage to building interiors. Proper AC copper pipe insulation prevents these issues and ensures optimal HVAC system performance.

Functions of AC Copper Pipe Insulation

  • Reduces thermal losses and improves energy efficiency
  • Prevents condensation and moisture-related damage
  • Maintains stable refrigerant temperature
  • Protects copper pipes from UV exposure and mechanical damage
  • Extends service life of HVAC piping systems

Types of Insulation Used for AC Copper Pipes

Elastomeric Rubber Insulation

Elastomeric insulation is the most widely used material for AC copper pipe insulation. It is a closed-cell foam with excellent thermal resistance and moisture barrier properties. Elastomeric insulation is flexible, easy to install and resistant to mold and mildew.

Polyethylene (PE) Insulation

PE insulation is commonly used in residential and light commercial air conditioning systems. It offers good thermal insulation and cost efficiency, making it suitable for standard split AC installations.

XLPE Insulation

Cross-linked polyethylene insulation provides improved thermal stability and mechanical strength compared to standard PE insulation. It is used in higher-performance HVAC systems and outdoor installations.

Pre-Insulated Copper Pipes

Pre-insulated copper pipes are supplied with factory-applied insulation, ensuring consistent thickness and superior adhesion. These are widely used in VRF, VRV and commercial HVAC projects where installation quality and speed are critical.

Insulation Thickness Selection

The thickness of AC copper pipe insulation is selected based on pipe size, refrigerant temperature, ambient conditions and system design requirements. Common insulation thicknesses include:

  • 6 mm – Light residential applications
  • 9 mm – Standard split AC systems
  • 13 mm – Commercial HVAC and VRF systems
  • 19 mm and above – Chillers and industrial HVAC

Proper thickness selection ensures compliance with energy codes and prevents condensation under varying environmental conditions.

Standards and Specifications

AC copper pipe insulation materials are designed to comply with international HVAC and building standards:

  • ASTM C534 – Elastomeric insulation materials
  • ASTM C547 – Flexible closed-cell insulation
  • EN 14304 – Thermal insulation products for HVAC
  • ASHRAE standards – HVAC energy efficiency guidelines

Copper pipes used with insulation typically conform to ASTM B280 or EN 12735 standards for refrigeration service.

Installation Best Practices

Correct installation of AC copper pipe insulation is essential to achieve desired performance. Insulation joints must be sealed properly to prevent moisture ingress. Outdoor installations should include UV-resistant cladding or protective tape to prevent degradation.

Pre-insulated copper pipes simplify installation and reduce the risk of errors, especially in large-scale HVAC projects.

Applications of AC Copper Pipe Insulation

Residential Air Conditioning

  • Split and window AC units
  • Inverter AC systems

Commercial HVAC Systems

  • VRF and VRV systems
  • Packaged air conditioners
  • Commercial chillers

Industrial Cooling Systems

  • Process cooling lines
  • Cold storage refrigeration

Advantages of Using Insulated Copper Pipes

  • Improved HVAC energy efficiency
  • Reduced operating costs
  • Enhanced system reliability
  • Protection against condensation and corrosion
  • Cleaner and safer building interiors

Quality Control and Inspection

Quality AC copper pipe insulation is manufactured under controlled conditions to ensure uniform density, thickness and closed-cell structure. Finished insulated pipes are inspected for surface integrity, adhesion and dimensional accuracy.

Using certified insulation materials and properly manufactured copper pipes ensures long-term performance and compliance with HVAC standards.

Conclusion

AC copper pipe insulation is an essential element of efficient and reliable air conditioning systems. By minimizing heat loss, preventing condensation and protecting copper piping, insulation directly contributes to HVAC system performance and longevity.

Whether for residential split AC units or large commercial HVAC installations, properly selected and installed AC copper pipe insulation ensures energy efficiency, safety and long-term operational reliability.
