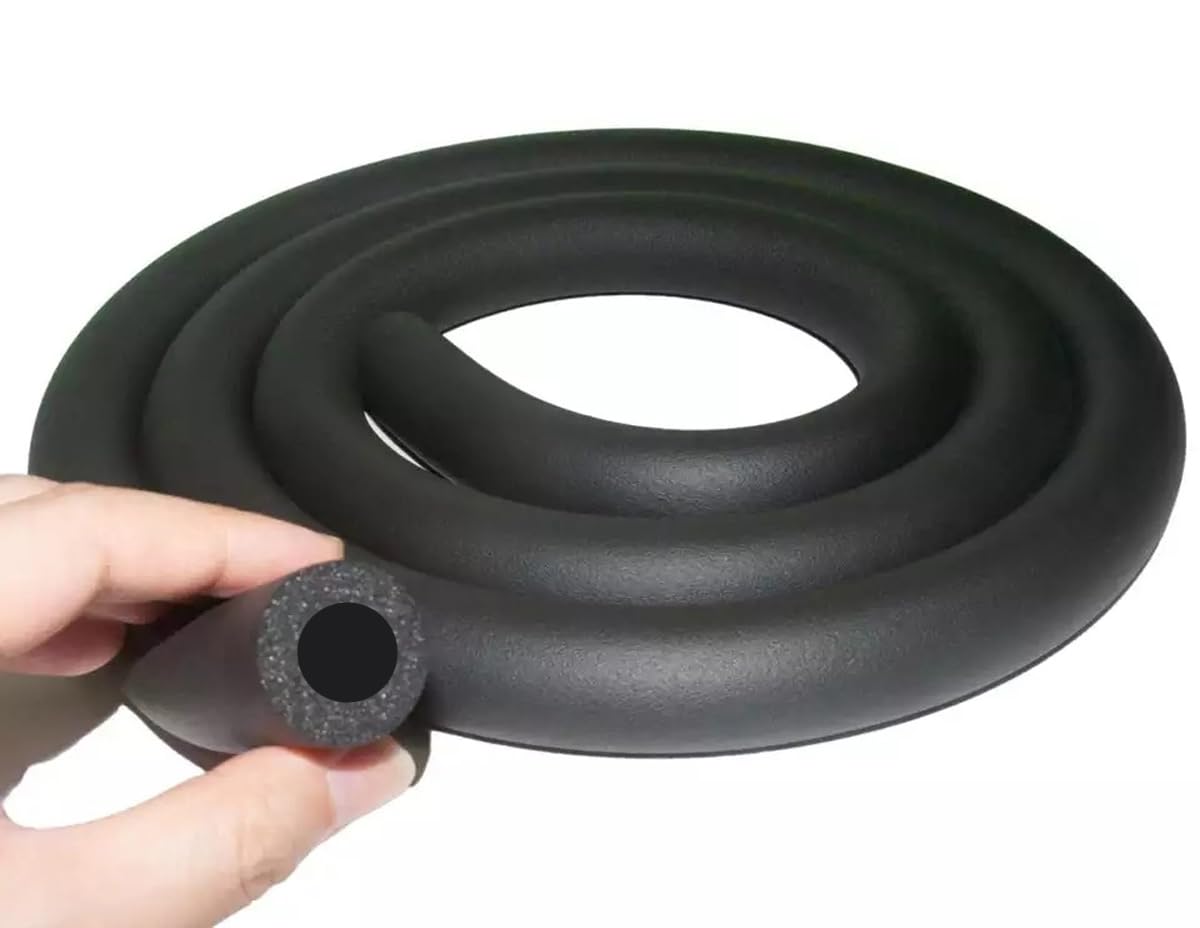

AC copper tube insulation applied on refrigerant piping for HVAC and air conditioning systems

AC Copper Tube Insulation – Types, Thickness and HVAC Energy Efficiency

AC copper tube insulation is an essential component of efficient air conditioning and HVAC systems. Copper tubes in AC systems carry refrigerant at temperatures much lower or higher than ambient conditions. Without proper insulation, these temperature differences result in energy loss, condensation, reduced system efficiency and potential damage to building interiors.

In residential split air conditioners, VRF and VRV systems, commercial chillers and industrial cooling installations, insulated copper tubes ensure stable refrigerant temperatures, reduced compressor load and reliable long-term system operation.

Why AC Copper Tube Insulation is Necessary

Copper tubes used in air conditioning systems transport refrigerant between indoor and outdoor units. The suction line typically carries cold refrigerant, while the liquid line may carry warm refrigerant. If these tubes are left uninsulated, heat exchange with the surrounding air occurs, reducing cooling efficiency.

Additionally, condensation forms on cold copper tubes when surface temperatures drop below the dew point, leading to water dripping, corrosion and mold growth. AC copper tube insulation prevents these issues and protects the overall HVAC system.

Key Functions of AC Copper Tube Insulation

  • Prevents heat gain and heat loss in refrigerant lines
  • Improves overall air conditioning energy efficiency
  • Eliminates condensation and moisture-related problems
  • Protects copper tubes from mechanical and UV damage
  • Extends the service life of AC piping systems

Common Insulation Materials for AC Copper Tubes

Elastomeric Rubber Insulation

Elastomeric rubber insulation is the most widely used insulation material for AC copper tubes. It is a closed-cell structure that provides excellent thermal resistance and acts as a built-in vapor barrier, preventing moisture ingress.

Polyethylene (PE) Insulation

PE insulation is commonly used in residential split AC installations. It is lightweight, cost-effective and suitable for moderate temperature differentials.

Cross-Linked Polyethylene (XLPE) Insulation

XLPE insulation offers improved thermal stability, higher temperature resistance and better mechanical strength compared to standard PE insulation. It is preferred in commercial and outdoor HVAC installations.

Factory Pre-Insulated Copper Tubes

Pre-insulated copper tubes are supplied with factory-applied insulation, ensuring uniform thickness, strong adhesion and consistent quality. These are widely used in VRF, VRV and large commercial HVAC projects.

Insulation Thickness for AC Copper Tubes

The thickness of AC copper tube insulation depends on tube diameter, refrigerant temperature, ambient conditions and local energy codes. Common insulation thickness options include:

  • 6 mm – Light-duty residential AC applications
  • 9 mm – Standard split and inverter AC systems
  • 13 mm – Commercial HVAC and VRF systems
  • 19 mm and above – Chillers and industrial cooling systems

Correct insulation thickness selection is critical to prevent condensation and comply with HVAC efficiency standards.

Standards and Compliance

AC copper tube insulation materials are manufactured and tested according to recognized international standards:

  • ASTM C534 – Elastomeric flexible insulation
  • ASTM C547 – Closed-cell insulation materials
  • EN 14304 – Thermal insulation products for HVAC
  • ASHRAE guidelines – HVAC energy efficiency and insulation design

Copper tubes used in insulated AC systems typically conform to ASTM B280 or EN 12735 standards for refrigeration tubing.

Installation Best Practices

Proper installation of AC copper tube insulation is essential for long-term performance. Insulation joints must be sealed using approved adhesives or tapes to maintain a continuous vapor barrier. Outdoor installations should include UV-resistant cladding or protective wrapping.

Using pre-insulated copper tubes significantly reduces installation errors and improves consistency, especially in large-scale HVAC projects.

Applications of AC Copper Tube Insulation

Residential Air Conditioning

  • Split and inverter AC systems
  • Multi-split air conditioners

Commercial HVAC Systems

  • VRF and VRV installations
  • Packaged air conditioners
  • Commercial chillers

Industrial and Process Cooling

  • Industrial refrigeration lines
  • Cold storage and freezer systems

Advantages of Properly Insulated Copper Tubes

  • Higher cooling efficiency and lower energy consumption
  • Reduced operating and maintenance costs
  • Improved system reliability
  • Protection against condensation-related damage
  • Cleaner and safer indoor environments

Quality Control and Inspection

High-quality AC copper tube insulation is produced under controlled conditions to ensure uniform density, closed-cell structure and consistent thickness. Finished insulated tubes are inspected for surface integrity, adhesion and dimensional accuracy.

Using certified insulation materials combined with standard-compliant copper tubes ensures long-term HVAC system performance and regulatory compliance.

Conclusion

AC copper tube insulation plays a crucial role in achieving energy-efficient, reliable and long-lasting air conditioning systems. By minimizing heat transfer, preventing condensation and protecting copper tubing, insulation directly enhances HVAC performance and durability.

Whether for residential split AC units or large commercial and industrial HVAC installations, properly selected and installed AC copper tube insulation is essential for optimal system operation and long-term value.
