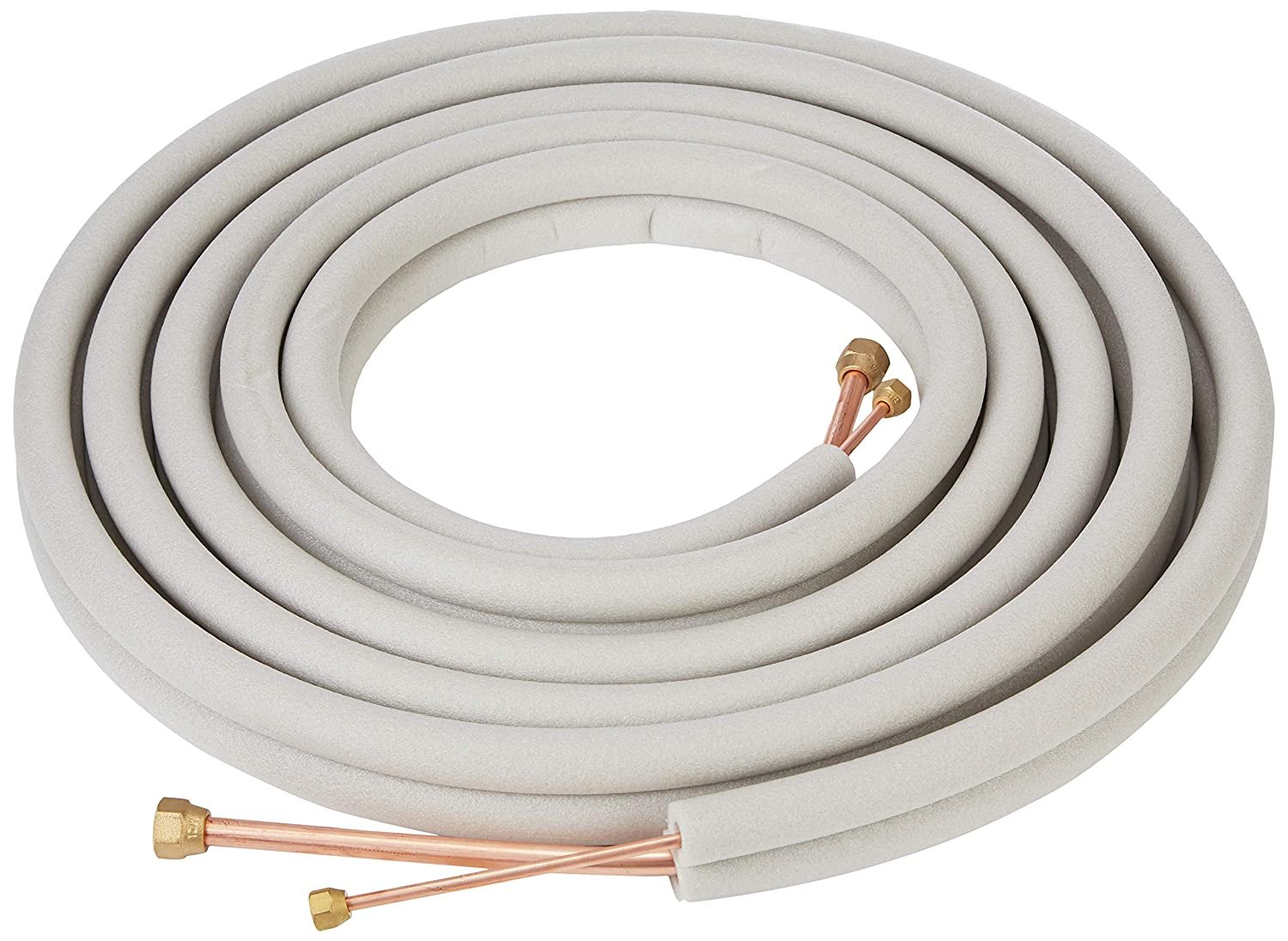

Air conditioner copper pipe insulation applied on refrigerant lines for split AC and HVAC systems

Air Conditioner Copper Pipe Insulation – Types, Thickness and HVAC Efficiency

Air conditioner copper pipe insulation is a vital component of efficient and reliable cooling systems. Copper pipes in air conditioners transport refrigerant between the indoor and outdoor units, often at temperatures significantly lower or higher than the surrounding environment. Without proper insulation, these pipes lose thermal energy, leading to reduced cooling performance, higher electricity consumption and moisture-related issues.

From residential split air conditioners to inverter ACs, VRF/VRV systems, commercial chillers and industrial HVAC installations, insulated copper piping ensures consistent refrigerant temperatures, system efficiency and long-term durability.

Why Air Conditioner Copper Pipe Insulation is Important

In air conditioning systems, the suction line carries cold refrigerant back to the compressor, while the liquid line carries high-pressure refrigerant. Uninsulated copper pipes allow unwanted heat transfer, forcing the compressor to work harder and reducing overall system efficiency.

Additionally, condensation forms on cold copper surfaces when exposed to humid air. This can result in water dripping, corrosion, mold growth and damage to walls, ceilings and equipment. Proper air conditioner copper pipe insulation eliminates these problems.

Functions of Air Conditioner Copper Pipe Insulation

  • Minimizes heat gain and heat loss in refrigerant lines
  • Improves cooling efficiency and energy savings
  • Prevents condensation and moisture damage
  • Protects copper pipes from UV and mechanical damage
  • Enhances service life of air conditioning systems

Insulation Materials Used for Air Conditioner Copper Pipes

Elastomeric Rubber Insulation

Elastomeric insulation is the most preferred material for air conditioner copper pipe insulation. Its closed-cell structure provides excellent thermal resistance and an integrated vapor barrier, preventing moisture ingress. It is flexible, durable and resistant to mold and fungi.

Polyethylene (PE) Insulation

PE insulation is commonly used in residential split AC installations. It offers adequate thermal performance at a lower cost and is suitable for standard operating conditions.

Cross-Linked Polyethylene (XLPE) Insulation

XLPE insulation provides improved thermal stability, higher temperature resistance and better mechanical strength. It is ideal for outdoor installations and commercial HVAC systems.

Pre-Insulated Copper Pipes

Factory pre-insulated copper pipes are supplied with uniform insulation thickness and superior adhesion. These pipes reduce installation time, minimize errors and are widely used in VRF, VRV and large commercial HVAC projects.

Recommended Insulation Thickness

The insulation thickness for air conditioner copper pipes depends on pipe diameter, refrigerant temperature, ambient conditions and energy efficiency requirements. Typical thicknesses include:

  • 6 mm – Light-duty residential air conditioners
  • 9 mm – Standard split and inverter AC systems
  • 13 mm – Commercial HVAC and VRF systems
  • 19 mm or more – Chillers and industrial cooling applications

Proper thickness selection ensures condensation control and compliance with HVAC design standards.

Applicable Standards and Guidelines

Air conditioner copper pipe insulation materials are manufactured in accordance with recognized international standards:

  • ASTM C534 – Flexible elastomeric insulation
  • ASTM C547 – Closed-cell insulation materials
  • EN 14304 – Thermal insulation products for HVAC systems
  • ASHRAE guidelines – HVAC insulation and energy efficiency

Copper pipes used in air conditioning systems typically conform to ASTM B280 or EN 12735 refrigeration tubing standards.

Installation Best Practices

For effective performance, air conditioner copper pipe insulation must be installed correctly. All joints and seams should be sealed using approved adhesives or tapes to maintain a continuous vapor barrier. Outdoor installations require UV-resistant coatings or protective cladding to prevent insulation degradation.

Using factory pre-insulated copper pipes improves installation quality and reduces the risk of insulation gaps, especially in large HVAC projects.

Applications of Air Conditioner Copper Pipe Insulation

Residential Air Conditioning

  • Split AC and inverter AC systems
  • Multi-split air conditioners

Commercial HVAC Systems

  • VRF and VRV installations
  • Packaged air conditioners
  • Commercial chillers

Industrial and Process Cooling

  • Cold storage and refrigeration systems
  • Industrial cooling pipelines

Advantages of Proper Copper Pipe Insulation

  • Lower energy consumption and operating costs
  • Improved cooling performance
  • Reduced maintenance and repair issues
  • Enhanced system reliability and lifespan
  • Cleaner, safer indoor environments

Quality Control and Inspection

High-quality air conditioner copper pipe insulation is produced under controlled conditions to ensure uniform density, closed-cell structure and consistent thickness. Finished insulated pipes are inspected for adhesion, surface integrity and dimensional accuracy.

Using certified insulation materials along with standard-compliant copper pipes ensures long-term HVAC performance and regulatory compliance.

Conclusion

Air conditioner copper pipe insulation is essential for achieving energy-efficient, reliable and long-lasting cooling systems. By minimizing heat transfer, preventing condensation and protecting copper piping, insulation directly improves HVAC system performance and durability.

Whether for residential split AC units or large commercial and industrial HVAC installations, properly selected and installed air conditioner copper pipe insulation ensures optimal efficiency, safety and long-term value.
