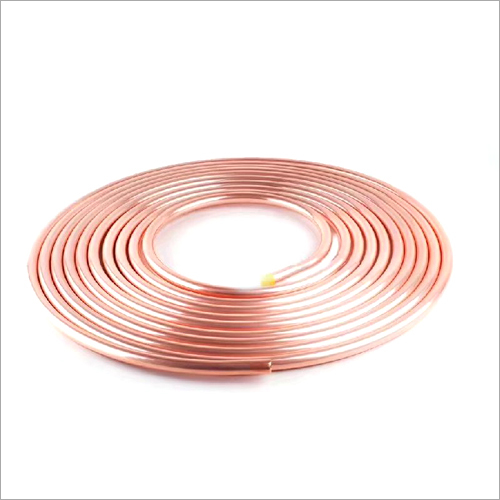

ASTM B280 Copper Tubing – ACR Specifications and HVAC Applications
ASTM B280 is the internationally recognized standard specification for seamless copper tubing used in air conditioning and refrigeration (ACR) systems. ASTM B280 copper tubing is specifically designed to meet the demanding requirements of modern HVAC and refrigeration applications, where high pressure resistance, cleanliness and reliability are critical.
Copper tubing manufactured to ASTM B280 is widely used in split air conditioners, VRF and VRV systems, heat pumps, chillers, refrigeration equipment and industrial cooling systems. Its precise dimensional control and stringent cleanliness requirements make it the preferred choice for refrigerant piping worldwide.
Scope of ASTM B280 Standard
ASTM B280 covers seamless copper tubing intended for use in air conditioning and refrigeration systems. Unlike general-purpose plumbing tubing, ASTM B280 tubing is supplied cleaned, dehydrated and sealed to prevent internal contamination that could damage compressors or restrict refrigerant flow.
The standard defines chemical composition, mechanical properties, wall thickness, dimensional tolerances and testing requirements for copper tubing used with modern refrigerants.
Copper Grade Used in ASTM B280 Tubing
ASTM B280 copper tubing is manufactured using high-purity phosphorus-deoxidized copper to ensure optimal performance and long-term reliability.
- C12200 – Phosphorus Deoxidized Copper (DHP)
This grade offers excellent corrosion resistance, high ductility and superior compatibility with brazing and flaring processes used in HVAC installations.
Key Features of ASTM B280 Copper Tubing
- Supplied cleaned, dehydrated and nitrogen charged
- Sealed ends to prevent moisture and contamination
- High pressure rating for modern refrigerants
- Excellent thermal conductivity
- Uniform wall thickness and smooth internal surface
ASTM B280 Copper Tubing Sizes
| Outside Diameter (in) | Outside Diameter (mm) | Typical Wall Thickness (mm) | Common Application |
|---|---|---|---|
| 1/4 | 6.35 | 0.80 | Split AC Liquid Line |
| 3/8 | 9.52 | 0.80 | AC Refrigerant Line |
| 1/2 | 12.70 | 0.90 | Suction Line |
| 5/8 | 15.88 | 1.00 | VRF Systems |
| 3/4 | 19.05 | 1.10 | Commercial HVAC |
Manufacturing Process
ASTM B280 copper tubing is produced through extrusion followed by multiple cold drawing stages to achieve precise outside diameter and wall thickness. Controlled annealing ensures optimal ductility for bending and installation.
After manufacturing, the tubing undergoes internal cleaning, dehydration and nitrogen purging. Ends are sealed to preserve cleanliness until installation.
Joining Methods for ASTM B280 Tubing
Brazing
Brazing is the most common joining method for ASTM B280 tubing, providing strong, leak-proof joints suitable for high-pressure refrigerant systems.
Flaring
Flaring is commonly used in split AC installations for connecting indoor and outdoor units, allowing secure mechanical joints.
Applications of ASTM B280 Copper Tubing
Air Conditioning Systems
- Split and window air conditioners
- VRF and VRV systems
- Packaged AC units
Refrigeration
- Commercial refrigeration units
- Cold storage and freezers
- Industrial refrigeration systems
Heat Pumps & Chillers
- Air-source and water-source heat pumps
- Chilled water systems
Quality Control and Testing
ASTM B280 copper tubing undergoes rigorous quality checks including chemical analysis, dimensional inspection, eddy current testing and pressure testing. Cleanliness is verified to meet stringent HVAC and refrigeration requirements.
Compliance with ASTM B280 ensures reliable performance, system efficiency and long service life in demanding HVAC environments.
Conclusion
ASTM B280 copper tubing is the industry standard for air conditioning and refrigeration systems, offering superior cleanliness, pressure resistance and thermal performance. Its compatibility with modern refrigerants and HVAC technologies makes it indispensable for residential, commercial and industrial cooling applications.
Manufactured to strict specifications and supported by comprehensive quality control, ASTM B280 copper tubing continues to be the preferred choice for high-performance HVAC and refrigeration systems worldwide.
