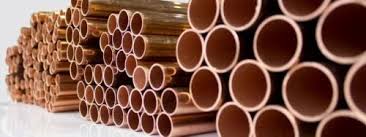

ASTM B819 Copper Tubing – Medical Gas and High Purity Applications
ASTM B819 copper tubing is a specialized specification developed specifically for medical gas and high purity piping systems. It is widely used in hospitals, healthcare facilities, laboratories and critical installations where oxygen, medical air, nitrous oxide, vacuum and other medical gases are distributed. Unlike general plumbing copper tubing, ASTM B819 places strict emphasis on internal cleanliness, contamination control and system safety.
Copper tubing manufactured to ASTM B819 is cleaned, degreased and sealed during production to ensure that it is suitable for oxygen service and medical environments where even trace contamination can pose serious risks.
Purpose of ASTM B819 Specification
The primary objective of ASTM B819 is to ensure that copper tubing used in medical gas systems is free from hydrocarbons, oils, grease and particulate matter. These contaminants can react dangerously with oxygen and other medical gases, making cleanliness a critical requirement.
ASTM B819 tubing is therefore produced under controlled manufacturing conditions and delivered with capped ends to maintain internal cleanliness until installation.
Copper Grade Used in ASTM B819 Tubing
ASTM B819 copper tubing is manufactured from high-purity phosphorus-deoxidized copper, selected for its excellent corrosion resistance, ductility and joining reliability.
- C12200 – Phosphorus Deoxidized Copper (DHP)
This copper grade offers resistance to hydrogen embrittlement and ensures safe brazing and joining in medical gas systems.
Types of ASTM B819 Copper Tubing
ASTM B819 copper tubing is available in the same wall thickness classifications as ASTM B88, allowing compatibility with standard fittings while meeting medical gas cleanliness requirements.
- Type K – Thickest wall, used for underground and high-pressure medical gas lines
- Type L – Most commonly used for hospital medical gas pipelines
Type M is generally not permitted for medical gas applications due to lower pressure ratings.
Cleanliness Requirements
One of the defining features of ASTM B819 copper tubing is its stringent cleanliness criteria. Tubing must be internally cleaned during manufacturing and tested to ensure hydrocarbon contamination levels remain below specified limits.
Each tube is sealed with protective caps to prevent contamination during storage, transport and installation.
ASTM B819 Copper Tubing Size Chart
| Nominal Size (in) | Outside Diameter (mm) | Type K Wall (mm) | Type L Wall (mm) |
|---|---|---|---|
| 1/4 | 6.35 | 0.89 | 0.71 |
| 3/8 | 9.52 | 1.02 | 0.81 |
| 1/2 | 15.88 | 1.65 | 1.27 |
| 3/4 | 22.23 | 1.83 | 1.07 |
| 1 | 28.58 | 2.11 | 1.65 |
Manufacturing Process
ASTM B819 copper tubing is produced through extrusion and cold drawing, followed by controlled annealing to achieve the required mechanical properties. A specialized cleaning process removes oils, lubricants and residues from the internal surface.
After cleaning, tubing is dried, inspected and capped to maintain cleanliness until installation.
Joining Methods for ASTM B819 Tubing
Brazing
Brazing with approved filler metals is the preferred joining method for ASTM B819 copper tubing. Fluxless brazing techniques are commonly used to minimize contamination.
Press-Fit Systems
In some healthcare installations, press-fit fittings approved for medical gas service are used to reduce installation time and contamination risk.
Applications of ASTM B819 Copper Tubing
Medical Gas Pipeline Systems
- Oxygen supply lines
- Medical air and vacuum systems
- Nitrous oxide and anesthetic gases
Healthcare Facilities
- Hospitals and clinics
- Operation theaters and ICUs
- Diagnostic laboratories
High Purity Gas Systems
- Laboratory gas distribution
- Pharmaceutical production facilities
- Cleanroom environments
Standards and Codes Associated with ASTM B819
ASTM B819 copper tubing is typically used in conjunction with medical gas installation standards and codes:
- NFPA 99 – Health Care Facilities Code
- HTM 02-01 – Medical gas pipeline systems
- ISO 7396 – Medical gas pipeline systems
- ASTM B88 – Dimensional reference standard
Quality Control and Testing
Each batch of ASTM B819 copper tubing undergoes rigorous quality checks including chemical composition analysis, dimensional inspection, eddy current testing and cleanliness verification. Documentation and certification are provided to confirm compliance with medical gas standards.
Safety Considerations
ASTM B819 copper tubing plays a critical role in ensuring patient safety. Proper handling, storage and installation are essential to maintain cleanliness and system integrity. Only qualified installers trained in medical gas systems should handle and install ASTM B819 tubing.
Conclusion
ASTM B819 copper tubing is the industry standard for medical gas and high purity piping systems where cleanliness, safety and reliability are non-negotiable. Its strict manufacturing controls, sealed delivery and compatibility with global medical gas codes make it the preferred choice for healthcare infrastructure worldwide.
Manufactured to exacting standards and supported by rigorous testing, ASTM B819 copper tubing ensures safe and dependable delivery of life-supporting gases in critical medical environments.
