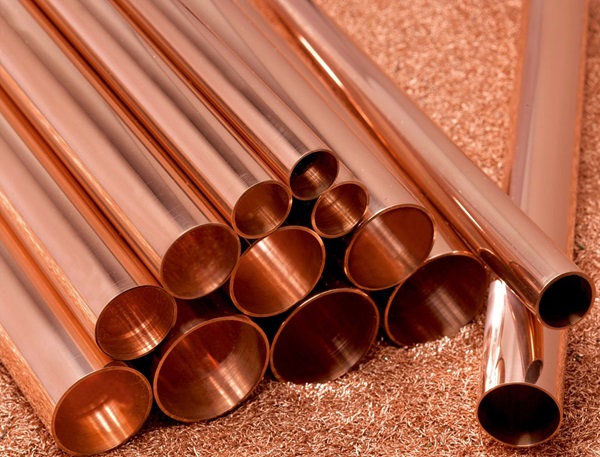

ASTM B88 Tubing – Type K, L, M Copper Tubing Specifications and Applications
ASTM B88 tubing is the globally recognized standard specification for seamless copper tubing used in plumbing, potable water supply, gas distribution, heating and HVAC applications. This specification defines the chemical composition, dimensional tolerances, wall thickness classifications, mechanical properties and testing requirements for copper tubing intended for pressure service.
Copper tubing manufactured to ASTM B88 is widely trusted for its durability, corrosion resistance and long service life. The standard classifies copper tubing into three primary wall thickness categories—Type K, Type L and Type M—allowing engineers and contractors to select the appropriate tubing based on pressure, installation conditions and regulatory requirements.
Scope of ASTM B88 Tubing Standard
ASTM B88 covers seamless copper tubing produced from phosphorus-deoxidized copper suitable for bending, flaring, soldering and brazing. The tubing is supplied in both rigid straight lengths and annealed coils, providing flexibility for a wide range of installation requirements.
This standard is primarily intended for water, gas and general plumbing services, but ASTM B88 tubing is also used in selected HVAC and industrial utility applications where reliability is critical.
Copper Grade Specified in ASTM B88
ASTM B88 tubing is manufactured using high-purity copper with controlled phosphorus content to ensure consistent performance.
- C12200 – Phosphorus Deoxidized Copper (DHP)
This grade offers excellent corrosion resistance, high ductility and good joining characteristics, making it ideal for pressure piping systems.
Types of ASTM B88 Copper Tubing
Type K ASTM B88 Tubing
Type K copper tubing has the thickest wall among ASTM B88 classifications and provides the highest pressure rating. It is commonly used for underground water services, fire protection systems and gas distribution where maximum strength and durability are required.
Type L ASTM B88 Tubing
Type L is the most commonly specified ASTM B88 tubing for residential and commercial plumbing. It offers an excellent balance between wall thickness, pressure capacity and cost, making it suitable for water supply, HVAC and gas piping.
Type M ASTM B88 Tubing
Type M has the thinnest wall thickness and is typically used for low-pressure residential plumbing applications where permitted by local codes.
ASTM B88 Tubing Size Chart (Common Sizes)
| Nominal Size (in) | Outside Diameter (mm) | Type K Wall (mm) | Type L Wall (mm) | Type M Wall (mm) |
|---|---|---|---|---|
| 1/2 | 15.88 | 1.65 | 1.27 | 0.89 |
| 3/4 | 22.23 | 1.83 | 1.07 | 0.89 |
| 1 | 28.58 | 2.11 | 1.65 | 1.14 |
| 1 1/2 | 41.28 | 2.41 | 1.65 | 1.14 |
| 2 | 53.98 | 2.77 | 1.96 | 1.27 |
Manufacturing Process
ASTM B88 copper tubing is produced through extrusion followed by multiple cold drawing operations to achieve precise outer diameter and wall thickness. Controlled annealing improves ductility while maintaining the mechanical strength required for pressure applications.
The tubing is finished with smooth internal surfaces to minimize friction losses and reduce the potential for scale formation.
Joining Methods for ASTM B88 Tubing
Soldering
Lead-free soldering is commonly used for potable water systems, ensuring compliance with drinking water regulations.
Brazing
Brazing provides stronger joints suitable for gas distribution, HVAC and higher-pressure systems.
Compression and Press-Fit
Compression fittings and press-fit systems offer fast installation where permitted by local plumbing and gas codes.
Applications of ASTM B88 Tubing
Plumbing and Water Supply
- Potable water distribution
- Hot and cold water plumbing
- Commercial and residential buildings
Gas Distribution
- LPG and natural gas piping
- Residential and commercial gas supply
HVAC and Heating
- Heating systems and radiators
- Chilled water piping
- Heat pump installations
Industrial Utility Systems
- Process water lines
- Compressed air systems
- General service piping
Quality Control and Testing
ASTM B88 tubing undergoes comprehensive quality control including chemical composition analysis, tensile testing, eddy current testing and dimensional inspection. Hydrostatic pressure testing may also be performed to verify pressure integrity.
Compliance with ASTM B88 ensures consistent quality, safety and long-term reliability in critical piping systems.
Conclusion
ASTM B88 tubing remains one of the most widely specified copper tubing standards for plumbing, gas and HVAC systems worldwide. Its clearly defined wall thickness types, proven material properties and global acceptance make it a trusted choice for both residential and industrial installations.
Manufactured to precise specifications and supported by rigorous testing, ASTM B88 copper tubing continues to deliver durability, safety and performance across modern infrastructure projects.
