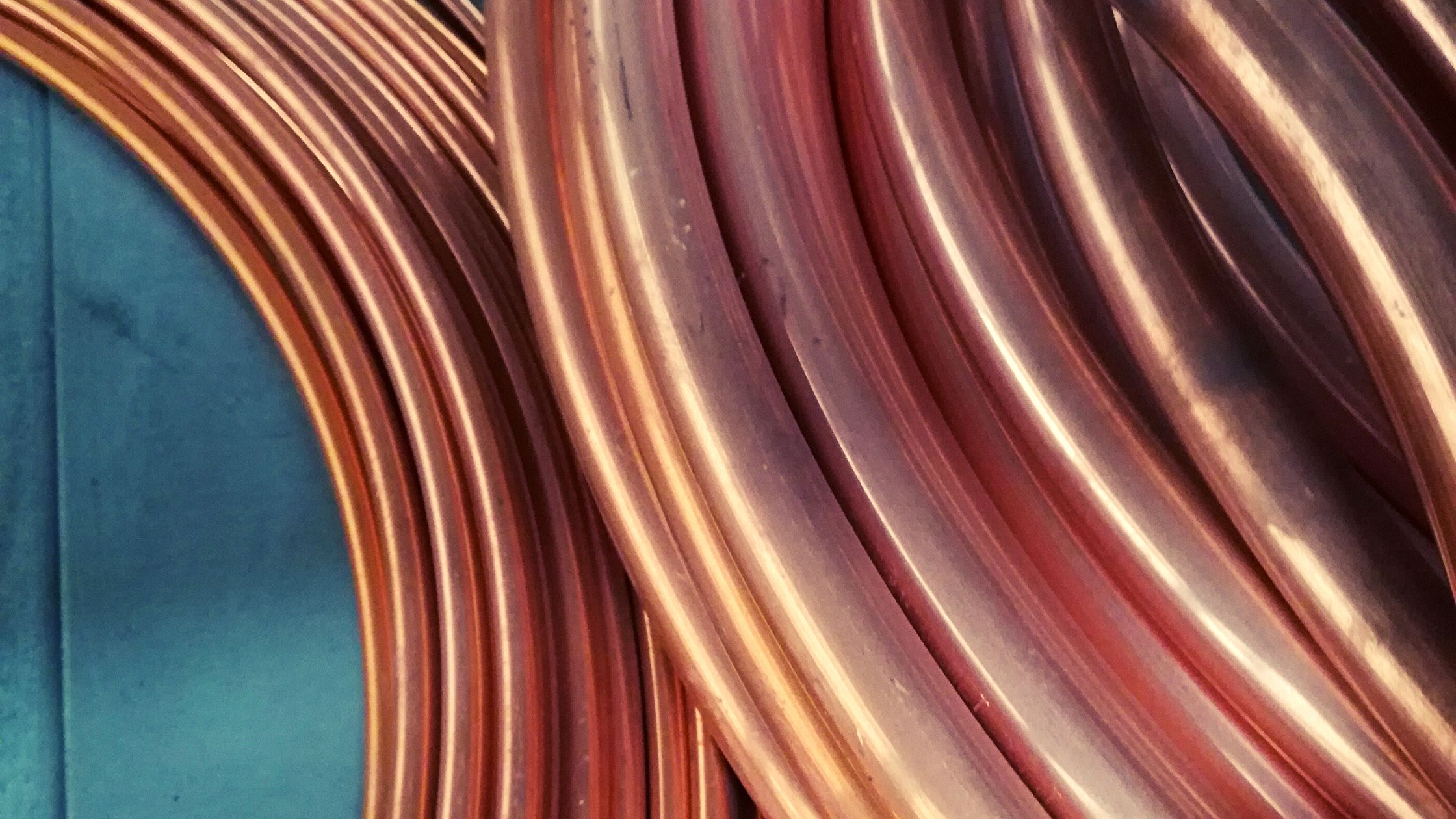

Bending copper pipe using pipe bender for plumbing HVAC and industrial systems

Bend Copper Pipe

Bending copper pipe is a critical process in plumbing, HVAC, refrigeration, and industrial piping systems. It allows for smooth directional changes in pipelines without the need for additional fittings, reducing pressure loss and improving system efficiency.

Due to copper’s excellent ductility and malleability, bending copper pipe is relatively easy compared to other metals, making it a preferred choice for complex piping layouts in residential, commercial, and industrial applications.

What is Bending Copper Pipe?

Bending copper pipe involves shaping the pipe into a desired angle or curve without compromising its structural integrity. This process eliminates the need for elbows and joints, ensuring a cleaner and more efficient piping system.

Proper bending techniques are essential to avoid kinks, flattening, or cracking of the pipe.

Methods to Bend Copper Pipe

Manual Bending

  • Performed using hand tools
  • Suitable for small diameters
  • Common in residential installations

Spring Bending

  • Uses internal or external springs
  • Prevents pipe collapse during bending
  • Ideal for soft copper tubing

Pipe Bender Tool

  • Provides precise and uniform bends
  • Used for medium to large pipe sizes
  • Ensures professional results

Machine Bending

  • Used in industrial applications
  • High precision and repeatability
  • Suitable for large-scale production

Tools Required

  • Pipe bender (manual or hydraulic)
  • Bending springs
  • Measuring tape and marker
  • Pipe cutter
  • Deburring tool

Key Factors in Bending

  • Bend Radius: Minimum radius to avoid damage
  • Wall Thickness: Affects bending strength
  • Pipe Diameter: Larger pipes require specialized tools
  • Material Temper: Annealed copper is easier to bend

Advantages of Bending Copper Pipe

  • Reduces need for fittings
  • Minimizes leakage points
  • Improves flow efficiency
  • Enhances system reliability
  • Cost-effective installation

Limitations

  • Requires proper tools and skill
  • Risk of pipe deformation if done incorrectly
  • Limited bend radius for rigid pipes

Applications of Bent Copper Pipe

Plumbing Systems

  • Water supply lines
  • Compact piping layouts

HVAC Systems

  • Refrigerant piping
  • Air conditioning installations

Gas Systems

  • LPG and CNG piping

Industrial Applications

  • Process piping
  • Heat exchanger coils

Standards and Compliance

  • ASTM B88 – Copper water tubes
  • ASTM B280 – HVAC copper tubing
  • EN 1057 – Copper tubes for water and gas

Best Practices

  • Use proper bending tools
  • Maintain correct bend radius
  • Avoid excessive force
  • Inspect bends for defects

Conclusion

Bending copper pipe is an essential technique in modern piping systems, offering flexibility, efficiency, and reduced installation costs. With proper tools, techniques, and adherence to standards, it ensures reliable and long-lasting performance.

Whether in plumbing, HVAC, or industrial applications, bending copper pipe enhances system design and functionality while maintaining structural integrity.
