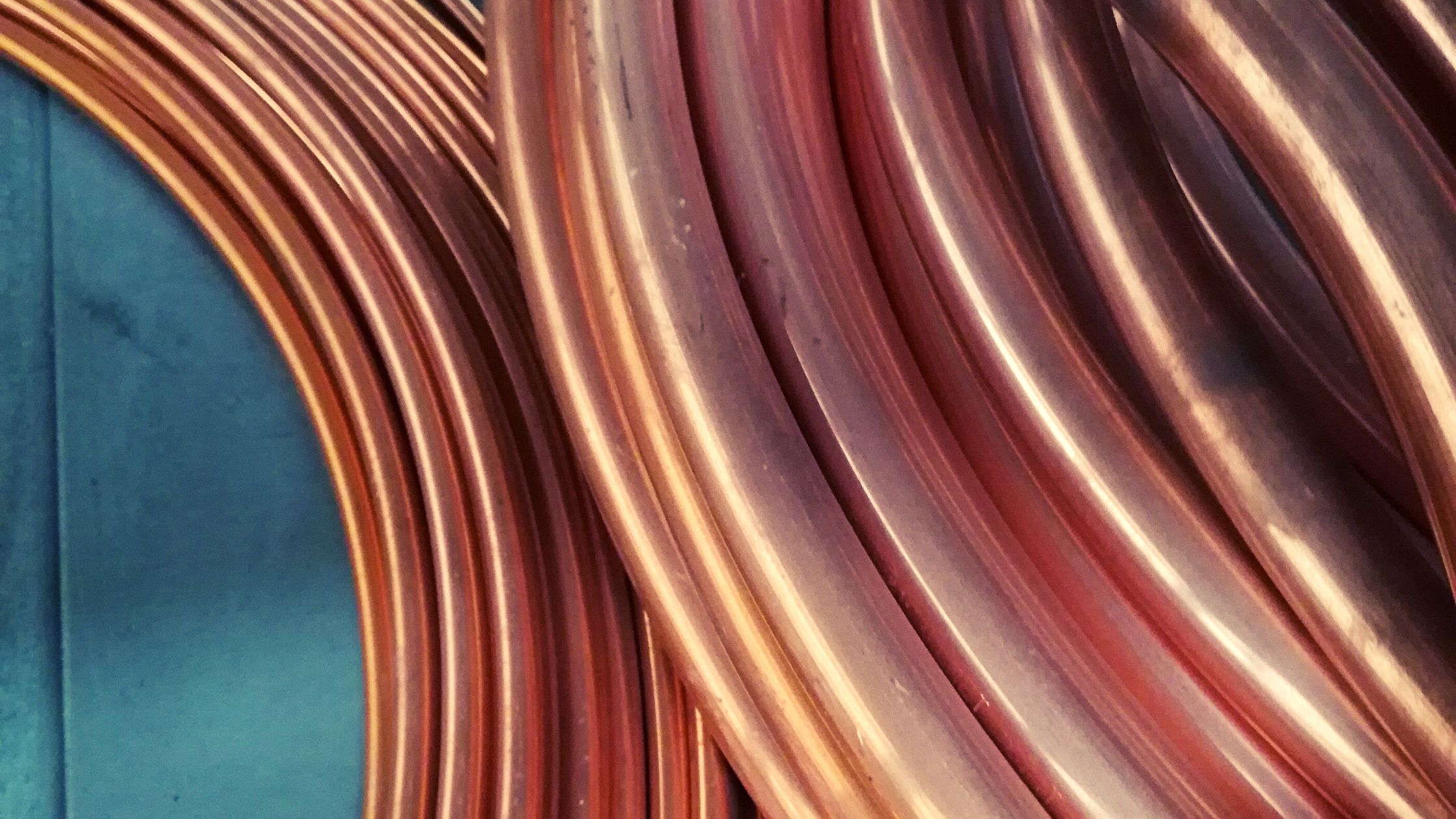

Bending copper pipe using pipe bender for plumbing HVAC and industrial systems

Bending Copper Pipe

Bending copper pipe is a fundamental process in plumbing, HVAC, refrigeration, gas distribution, and industrial piping systems. It enables smooth directional changes in pipelines without requiring additional fittings, improving efficiency and reducing potential leak points.

Copper’s natural ductility and malleability make it an ideal material for bending, allowing for precise shaping while maintaining structural integrity. This makes bending copper pipe a preferred method in both residential and industrial piping installations.

What is Bending Copper Pipe?

Bending copper pipe refers to the process of shaping a copper pipe into a specific angle or curve without damaging its structure. This process eliminates the need for elbows and joints, resulting in a more efficient and aesthetically clean piping system.

Proper techniques are essential to prevent issues such as kinking, flattening, or cracking of the pipe.

Methods of Bending Copper Pipe

Manual Bending

  • Performed using simple hand tools
  • Suitable for small diameter pipes
  • Common in residential plumbing

Spring Bending

  • Uses internal or external bending springs
  • Prevents pipe collapse
  • Ideal for soft copper tubing

Pipe Bender Tool

  • Ensures accurate and consistent bends
  • Used for medium-sized pipes
  • Provides professional results

Hydraulic and Machine Bending

  • Used in industrial applications
  • High precision and repeatability
  • Suitable for large-diameter pipes

Tools Required

  • Pipe bender (manual or hydraulic)
  • Bending springs
  • Pipe cutter
  • Measuring tools
  • Deburring tools

Key Factors to Consider

  • Bend Radius: Maintain minimum radius to avoid damage
  • Wall Thickness: Thicker pipes are more resistant to deformation
  • Pipe Diameter: Larger diameters require specialized tools
  • Material Temper: Annealed copper bends more easily

Advantages of Bending Copper Pipe

  • Reduces number of fittings required
  • Minimizes potential leakage points
  • Improves flow efficiency
  • Enhances system aesthetics
  • Cost-effective installation

Limitations

  • Requires proper tools and expertise
  • Risk of pipe deformation if done incorrectly
  • Limited bend radius for rigid pipes

Applications of Bending Copper Pipe

Plumbing Systems

  • Water supply lines
  • Compact piping layouts

HVAC Systems

  • Refrigerant piping
  • Air conditioning installations

Gas Systems

  • LPG and CNG piping

Industrial Applications

  • Process piping systems
  • Heat exchanger coils

Standards and Compliance

  • ASTM B88 – Copper water tubes
  • ASTM B280 – Copper tubing for HVAC
  • EN 1057 – Copper tubes for water and gas

Best Practices

  • Use appropriate bending tools
  • Follow recommended bend radius
  • Avoid excessive force during bending
  • Inspect pipes after bending for defects

Conclusion

Bending copper pipe is an essential technique that enhances the efficiency, reliability, and aesthetics of piping systems. With proper tools and techniques, it allows for seamless installation and reduced maintenance requirements.

Whether used in plumbing, HVAC, or industrial applications, bending copper pipe ensures long-lasting performance and optimal system functionality.
