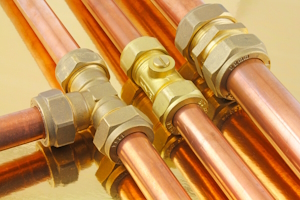

Compression Coupling for Copper Pipe in Plumbing and Industrial Systems
A compression coupling for copper pipe is a widely used fitting designed to join two copper pipes without the need for soldering or brazing. It provides a quick, efficient, and reliable solution for connecting pipes in plumbing, HVAC, gas distribution, and industrial systems.
Known for ease of installation and strong sealing capability, compression couplings are especially useful in applications where heat-based joining methods are not feasible or desirable.
What is a Compression Coupling for Copper Pipe?
A compression coupling for copper pipe is a mechanical fitting that joins two pipes using a compression ring (ferrule) and a nut. When the nut is tightened, the ferrule compresses against the pipe surface, creating a tight, leak-proof seal.
This type of coupling is ideal for both temporary and permanent installations, offering flexibility and convenience.
Components of a Compression Coupling
A standard compression coupling for copper pipe consists of the following components:
- Body: Main fitting that connects the pipes
- Compression Nut: Tightens the assembly
- Ferrule (Olive): Creates the seal by compressing against the pipe
Working Principle
The working principle of a compression coupling for copper pipe is based on mechanical compression. When the nut is tightened, it forces the ferrule into the pipe, creating a strong seal that prevents leakage.
Unlike soldered or brazed joints, this method does not require heat, making it suitable for quick installations and repairs.
Types of Compression Couplings for Copper Pipe
- Straight Couplings: Join two pipes of the same diameter
- Reducing Couplings: Connect pipes of different sizes
- Union Couplings: Allow easy disassembly for maintenance
Advantages of Compression Coupling for Copper Pipe
- No need for soldering or brazing
- Quick and easy installation
- Reusable in certain applications
- Strong and leak-proof connection
- Suitable for confined spaces
- Minimal tools required
These advantages make compression couplings highly practical for both professionals and maintenance applications.
Standards for Compression Coupling
Compression coupling for copper pipe is manufactured in compliance with international standards:
- ASME B16.22 – Copper fittings
- ASTM B88 – Copper water tube
- EN 1254 – Copper and copper alloy fittings
- IS 1545 – Copper piping standards
These standards ensure dimensional accuracy and reliable performance.
Material Grades Used
Compression couplings are typically made from high-quality materials:
- C12200 – Phosphorus-deoxidized copper
- Brass – For enhanced strength and durability
These materials offer excellent corrosion resistance and mechanical performance.
Sizes and Dimensions
| Pipe Size | Outer Diameter (mm) | Application |
|---|---|---|
| 1/4 inch | 6.35 | Instrumentation lines |
| 3/8 inch | 9.52 | HVAC systems |
| 1/2 inch | 15.88 | Plumbing systems |
| 3/4 inch | 22.23 | Commercial applications |
| 1 inch and above | 28.58+ | Industrial systems |
Installation Process
Installing a compression coupling for copper pipe involves the following steps:
- Cut the pipe cleanly and remove burrs
- Slide the compression nut onto the pipe
- Place the ferrule onto the pipe
- Insert the pipe into the coupling body
- Tighten the nut using appropriate tools
Proper installation ensures a leak-free and durable connection.
Applications of Compression Coupling for Copper Pipe
Plumbing Systems
- Water supply lines
- Repair and maintenance work
HVAC Systems
- Air conditioning pipelines
- Refrigeration systems
Gas Distribution
- LPG and natural gas pipelines
- Low-pressure gas systems
Industrial Applications
- Process piping
- Utility systems
Limitations of Compression Couplings
- Not ideal for extremely high-pressure systems
- Requires proper tightening to avoid leaks
- May need periodic inspection in critical systems
Conclusion
A compression coupling for copper pipe is a versatile and efficient solution for joining copper pipes without the need for heat. Its ease of installation, reliability, and adaptability make it a popular choice across plumbing, HVAC, and industrial applications.
When installed correctly and used within its design limits, a compression coupling provides long-lasting, leak-free performance, making it an essential component in modern piping systems.
