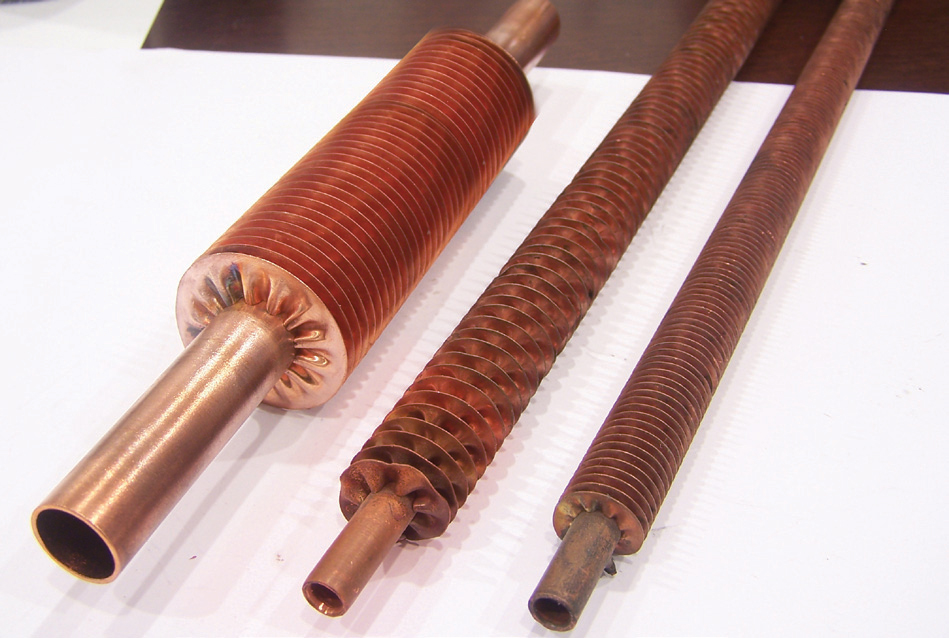

Copper fin tubes for heat exchangers, condensers and industrial cooling applications

Copper Fin Tubes – Manufacturing, Types and Heat Exchanger Applications

Copper fin tubes are high-performance heat transfer components designed to enhance thermal efficiency in heat exchangers, condensers, evaporators and air-cooled systems. By adding extended fin surfaces to copper tubes, the effective heat transfer area is significantly increased, allowing faster and more efficient exchange of heat between fluids and surrounding air or gases.

Due to copper’s excellent thermal conductivity, corrosion resistance and formability, copper fin tubes are widely used across HVAC, power generation, refineries, petrochemical plants, marine systems and industrial process equipment where reliable and efficient thermal management is essential.

Why Copper is Preferred for Fin Tubes

Copper possesses one of the highest thermal conductivities among engineering metals, making it ideal for applications where rapid heat transfer is required. When combined with fin structures, copper fin tubes deliver superior performance even in compact heat exchanger designs.

In addition, copper offers excellent resistance to corrosion, compatibility with a wide range of fluids and long service life under continuous thermal cycling, making it a trusted material for critical industrial applications.

Types of Copper Fin Tubes

Integral Fin Copper Tubes

Integral fin tubes are manufactured by rolling or extrusion, where fins are formed directly from the parent copper tube material. This creates a continuous metal structure with excellent thermal contact and mechanical strength.

Embedded Fin Copper Tubes

Embedded fin tubes feature a fin strip inserted into a machined groove on the tube surface. This method ensures secure fin attachment and high heat transfer efficiency, commonly used in industrial air coolers.

Wrapped Fin Copper Tubes

Wrapped fin tubes are produced by helically winding a fin strip around the copper tube. These tubes offer flexibility in fin material and geometry and are widely used in air-cooled heat exchangers.

Enhanced Internal Surface Fin Tubes

Copper fin tubes can also be combined with inner grooved or enhanced internal surfaces to maximize heat transfer on both internal and external sides of the tube.

Manufacturing Process

Copper fin tubes begin with high-quality seamless copper tubes produced through extrusion and cold drawing. Depending on the fin design, fins are formed by rolling, embedding or wrapping using precision machinery to achieve consistent fin height, pitch and bonding.

Post-manufacturing processes include stress relieving, straightening, dimensional inspection and surface finishing to ensure optimal thermal and mechanical performance.

Copper Grades Used

Common copper grades used for copper fin tubes include:

  • C12200 – Phosphorus Deoxidized Copper
  • C10200 – Oxygen-Free High Conductivity Copper
  • C11000 – Electrolytic Tough Pitch Copper

The selection of grade depends on operating temperature, corrosion exposure, joining method and application requirements.

Applicable Standards

  • ASTM B111 – Copper condenser and heat exchanger tubes
  • ASTM B359 – Copper finned tubes
  • EN 12451 – Copper and copper alloy tubes for heat exchangers
  • EN 12735 – Copper tubes for refrigeration
  • JIS H3300 – Copper tubes

Dimensions and Fin Specifications

Copper fin tubes are available in outer diameters typically ranging from 9.52 mm to 50.8 mm and above, depending on application. Fin height, fin density (fins per inch or per meter) and fin thickness are customized based on thermal design requirements.

Tube lengths are supplied in standard straight lengths or cut-to-size as required by heat exchanger design.

Applications of Copper Fin Tubes

HVAC & Refrigeration

  • Air-cooled condensers and evaporators
  • Chillers and heat pumps
  • Refrigeration units and cold storage

Power Generation

  • Power plant heat exchangers
  • Heat recovery systems
  • Thermal power cooling circuits

Refinery & Petrochemical

  • Process gas coolers
  • Waste heat recovery units
  • Petrochemical heat exchangers

Marine & Industrial

  • Marine engine cooling systems
  • Industrial air heaters and coolers
  • Oil and gas processing equipment

Advantages of Copper Fin Tubes

  • High heat transfer efficiency
  • Compact and lightweight heat exchanger design
  • Excellent corrosion resistance
  • Long operational life
  • Compatibility with multiple working fluids

Quality Control and Testing

Copper fin tubes undergo strict quality control including dimensional inspection, fin bonding strength checks, eddy current testing and visual examination. Thermal performance testing may be conducted to verify compliance with design specifications.

Adherence to international standards ensures consistent performance, safety and durability in demanding industrial environments.

Conclusion

Copper fin tubes are a critical component in modern heat exchanger technology, offering superior thermal performance, reliability and versatility across HVAC, power, refinery and industrial applications. Their ability to maximize heat transfer while maintaining structural integrity makes them indispensable in high-efficiency thermal systems.

Manufactured to precise standards and supported by rigorous quality control, copper fin tubes continue to enable efficient and sustainable thermal management solutions worldwide.
