Copper to Copper Fittings for Seamless Piping Systems
Copper to copper fittings are specialized components used to connect copper pipes or tubes within a piping system. These fittings ensure a seamless connection between copper components, maintaining system integrity, corrosion resistance, and flow efficiency.
Widely used in plumbing, HVAC, refrigeration, gas distribution, and industrial applications, copper to copper fittings provide reliable, leak-proof connections and long-term durability.
What are Copper to Copper Fittings?
Copper to copper fittings are connectors specifically designed to join two copper pipes or tubes. These fittings can be used to connect pipes of the same size or different diameters, depending on system requirements.
They are manufactured to ensure compatibility with copper materials, preventing galvanic corrosion and ensuring consistent performance.
Types of Copper to Copper Fittings
Copper to copper fittings are available in various configurations:
- Couplings: Join two copper pipes of the same diameter
- Reducers: Connect pipes of different sizes
- Elbows: Change the direction of flow

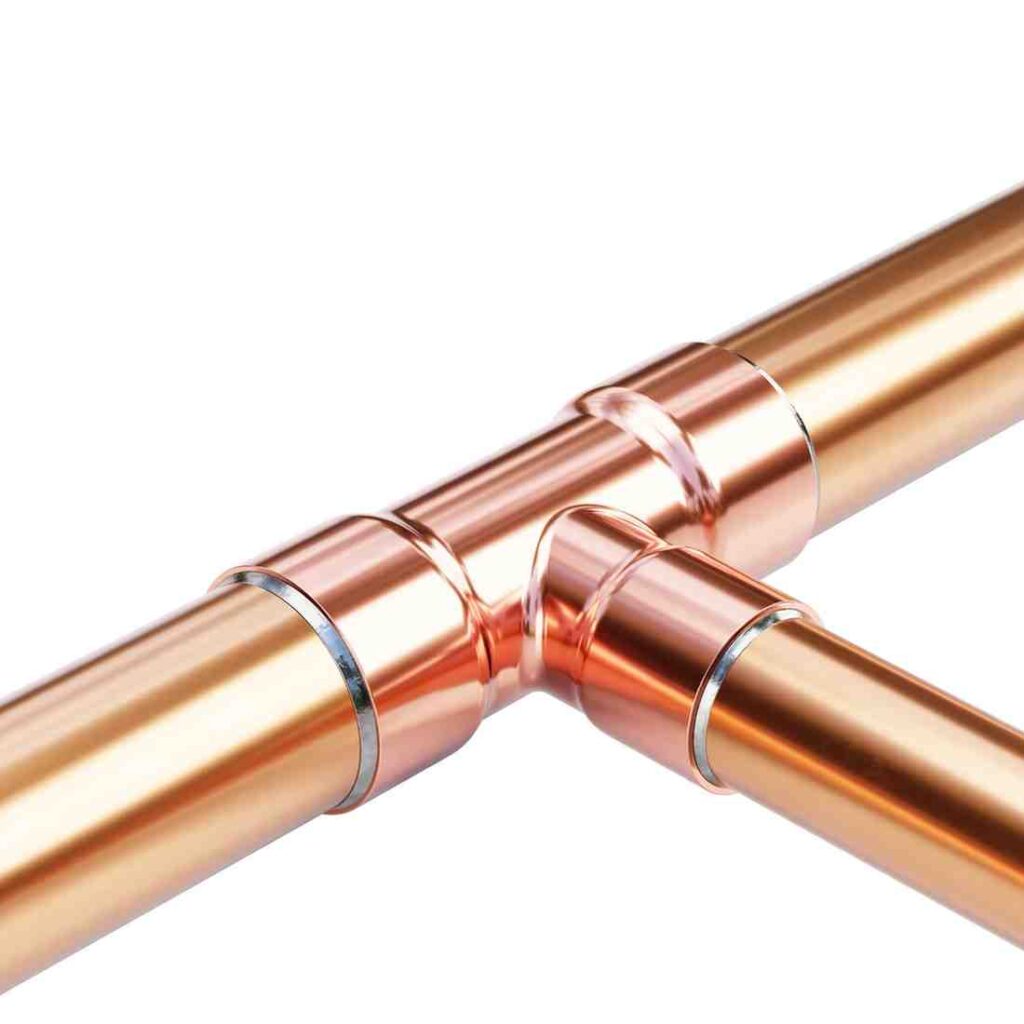

- Tees: Allow branching of pipelines
- Unions: Enable easy disconnection for maintenance
Joining Methods for Copper to Copper Fittings
Copper to copper fittings can be installed using various joining techniques:
Soldering
Soldering is commonly used in plumbing systems to create leak-proof joints at moderate temperatures.
Brazing
Brazing uses higher temperatures and stronger filler materials, making it suitable for HVAC and industrial applications.
Compression Fittings
Compression fittings provide a mechanical connection without heat, ideal for quick installations and repairs.
Press-Fit Systems
Press-fit systems use mechanical pressing tools to create secure joints quickly and efficiently.
Advantages of Copper to Copper Fittings
- Excellent corrosion resistance
- No risk of galvanic corrosion
- High durability and long service life
- Leak-proof and reliable connections
- Compatible with various joining methods
- Suitable for high temperature and pressure
These advantages make copper to copper fittings ideal for critical piping systems.
Standards for Copper to Copper Fittings
Copper to copper fittings are manufactured in accordance with international standards:
- ASME B16.22 – Copper fittings
- ASTM B88 – Copper water tube
- ASTM B75 – Seamless copper tube
- EN 1254 – Copper and copper alloy fittings
- IS 1545 – Copper piping standards
These standards ensure quality, safety, and compatibility.
Material Grades Used
Copper to copper fittings are typically made from high-purity copper grades:
- C12200 – Phosphorus-deoxidized copper
- C12000 – High-grade copper
These materials provide excellent strength, corrosion resistance, and workability.
Sizes and Dimensions
| Nominal Size | Outer Diameter (mm) | Application |
|---|---|---|
| 1/4 inch | 6.35 | Instrumentation systems |
| 3/8 inch | 9.52 | HVAC systems |
| 1/2 inch | 15.88 | Plumbing systems |
| 3/4 inch | 22.23 | Commercial piping |
| 1 inch and above | 28.58+ | Industrial systems |
Manufacturing Process
Copper to copper fittings are manufactured using advanced processes to ensure precision and quality:
- Selection of high-quality copper raw material
- Hot forging or extrusion
- Machining and shaping
- Annealing for improved ductility
- Surface finishing and cleaning
- Quality inspection and testing
Applications of Copper to Copper Fittings
Plumbing Systems
- Water supply pipelines
- Sanitary systems
HVAC and Refrigeration
- Air conditioning systems
- Refrigerant piping
Gas Distribution
- LPG and natural gas pipelines
Industrial Applications
- Oil and gas processing
- Power plants
- Marine systems
Medical Systems
- Medical gas pipelines
- Clean room installations
Why Choose Copper to Copper Fittings?
Copper to copper fittings ensure compatibility, durability, and high performance in piping systems. By maintaining uniform material properties, these fittings reduce the risk of corrosion and ensure long-term reliability.
Additionally, copper is a recyclable material, making it an environmentally sustainable choice for modern infrastructure.
Quality Control and Testing
Manufacturers ensure product quality through rigorous testing:
- Hydrostatic pressure testing
- Dimensional inspection
- Chemical composition analysis
- Surface quality checks
Conclusion
Copper to copper fittings are essential for creating reliable and efficient piping systems. Their compatibility, corrosion resistance, and versatility make them a preferred choice across multiple industries.
Whether used in plumbing, HVAC, gas distribution, or industrial applications, copper to copper fittings provide long-lasting performance and ensure safe, leak-free operation.
