Copper Tube Soldering
Copper tube soldering is a widely used joining method in plumbing, HVAC, refrigeration, and light industrial piping systems. It involves the use of a low-melting-point filler metal to create strong, leak-proof joints between copper tubes and fittings. Due to its efficiency, affordability, and reliability, copper tube soldering remains a preferred solution for many piping installations.
In modern industrial and commercial environments, copper tube soldering is extensively applied in water distribution systems, HVAC circuits, and utility piping where moderate temperature and pressure conditions are present.
What is Copper Tube Soldering?

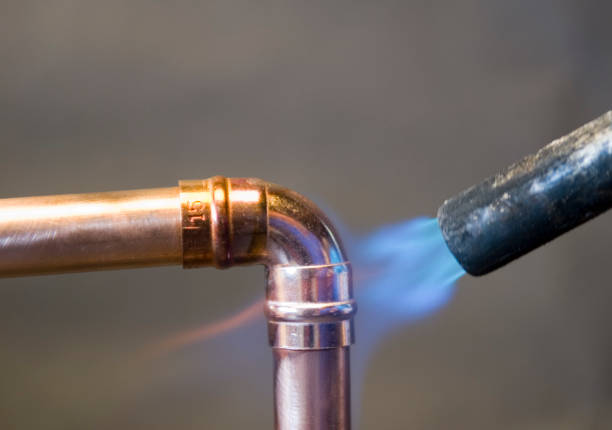

Copper tube soldering is a capillary joining process where heat is applied to a copper tube and fitting assembly, allowing molten solder to flow into the joint. Once cooled, the solder solidifies to form a secure, leak-tight seal.
This method is commonly used for joining copper tubes in residential plumbing, HVAC systems, and certain industrial applications.
Principle of Copper Tube Soldering
The process relies on capillary action, where molten solder is drawn into the narrow clearance between the tube and fitting. Proper cleaning, flux application, and uniform heating are critical to ensure effective bonding and joint integrity.
A correctly soldered joint provides excellent sealing performance and mechanical stability under appropriate operating conditions.
Tools Required for Copper Tube Soldering
- Tube cutter for precise cutting
- Deburring tool to remove internal rough edges
- Cleaning brush or emery cloth
- Flux to prevent oxidation
- Solder (lead-free or silver-bearing)
- Propane or MAP gas torch
- Safety equipment (gloves, goggles)
Types of Solder Used
The selection of solder depends on the application:
- Lead-free solder: Required for potable water systems
- Silver-bearing solder: Offers improved strength and durability
- Soft solder: Suitable for low-temperature applications
All solder materials should comply with relevant health and safety standards.
Step-by-Step Copper Tube Soldering Process
- Cut the Tube: Ensure a straight and clean cut
- Deburr: Remove burrs to maintain smooth flow
- Clean Surfaces: Eliminate oxidation for proper bonding
- Apply Flux: Prevent oxidation during heating
- Assemble Joint: Insert tube fully into fitting
- Heat Joint: Evenly heat using a torch
- Apply Solder: Allow solder to flow into the joint
- Cool Naturally: Avoid disturbing the joint during cooling
Advantages of Copper Tube Soldering
- Simple and cost-effective joining method
- Reliable leak-proof connections
- Minimal equipment required
- Suitable for a wide range of applications
- Quick installation process
Limitations of Copper Tube Soldering
- Not suitable for high-temperature or high-pressure systems
- Not recommended for critical gas applications
- Requires proper surface preparation
- Dependent on operator skill and experience
Applications of Copper Tube Soldering
Plumbing Systems
- Hot and cold water distribution
- Drinking water systems
HVAC Systems
- Chilled water lines
- Heating circuits
Refrigeration Systems
- Low-pressure refrigerant lines
Industrial Utility Systems
- Process water piping
- Non-critical fluid transport
Standards and Compliance
Copper tube soldering must adhere to relevant industry standards:
- ASTM B828 – Practice for making capillary joints
- ASTM B32 – Specification for solder metals
- NSF/ANSI 61 – Drinking water system compliance
- Local plumbing and safety codes
Safety Practices
Safety is a key consideration during copper tube soldering:
- Ensure proper ventilation
- Use protective equipment
- Keep flammable materials away
- Handle tools and heat sources carefully
Comparison: Soldering vs Brazing
| Parameter | Soldering | Brazing |
|---|---|---|
| Temperature | Below 450°C | Above 450°C |
| Strength | Moderate | High |
| Applications | Water & low-pressure systems | Gas, HVAC & industrial systems |
| Filler Material | Soft solder | Silver-based alloys |
Quality Control and Inspection
To ensure reliability, soldered joints must be inspected:
- Visual inspection for uniform solder flow
- Leak testing under pressure
- Checking for incomplete bonding
Consistent inspection ensures long-term performance and system safety.
Conclusion
Copper tube soldering is a fundamental technique in plumbing and HVAC systems, offering a reliable and economical method for joining copper tubes. Its ease of use and proven performance make it a preferred choice for many applications.
When executed correctly with proper materials and adherence to standards, copper tube soldering ensures durable, leak-free connections that contribute to efficient and long-lasting piping systems.
