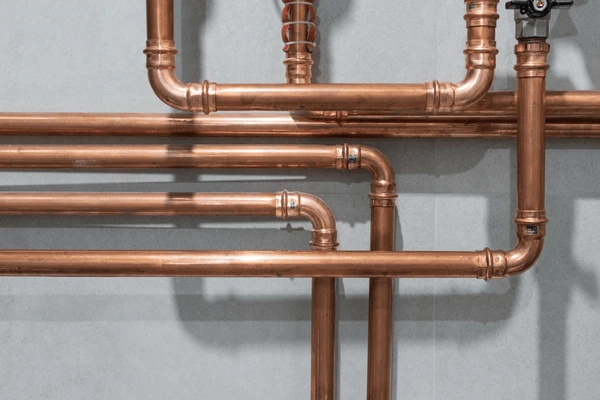

Copper Tubing and Fittings for HVAC, Plumbing and Industrial Systems
Copper tubing and fittings are widely used in modern engineering systems due to their superior thermal conductivity, corrosion resistance, and durability. From HVAC and refrigeration to plumbing, gas distribution, and industrial processing, copper systems provide efficient and long-lasting performance.
The combination of copper tubing and fittings enables flexible system design, secure connections, and efficient fluid or gas transport. These systems are trusted across industries for their reliability and compliance with global standards.
What is Copper Tubing and Fittings?
Copper tubing refers to seamless or welded copper pipes designed for fluid and gas transport, while fittings are components used to connect, redirect, or terminate the tubing system. Together, copper tubing and fittings form a complete piping solution for various applications.
These systems are engineered to provide leak-proof connections and efficient flow, making them suitable for both residential and industrial use.
Types of Copper Tubing
Copper tubing is available in different types based on wall thickness and application:
- Type K: Thickest wall, used for underground and high-pressure applications
- Type L: Medium wall, widely used in plumbing and gas systems
- Type M: Thin wall, used for residential water systems
- ACR Tubing: Designed for HVAC and refrigeration systems
Types of Copper Fittings
Copper fittings are essential for connecting tubing and are available in various configurations:
- Elbows (45°, 90°, 180°)
- Tees (equal and reducing)
- Reducers (concentric and eccentric)
- Couplings and unions
- Caps and plugs
- Adapters and flanges
Joining Methods for Copper Tubing and Fittings
Copper tubing and fittings can be joined using several techniques depending on application requirements:
- Soldering: Common in plumbing systems
- Brazing: Used in HVAC and high-pressure systems
- Compression Fittings: Quick installation without heat
- Press-Fit Systems: Modern, efficient joining method
Advantages of Copper Tubing and Fittings
- Excellent thermal conductivity
- High corrosion resistance
- Long service life
- Leak-proof and reliable connections
- Resistance to high temperature and pressure
- Environmentally friendly and recyclable
These advantages make copper tubing and fittings ideal for critical applications across industries.
Standards for Copper Tubing and Fittings
Copper tubing and fittings are manufactured according to international standards:
- ASTM B88 – Copper water tube
- ASTM B280 – Copper tubing for HVAC
- EN 1057 – Copper tubes for water and gas
- ASME B16.22 – Copper fittings
- IS 1545 – Copper pipes for plumbing systems
Compliance with these standards ensures quality, safety, and compatibility.
Material Grades Used
Copper tubing and fittings are typically manufactured using high-purity copper grades:
- C12200 – Phosphorus-deoxidized copper
- C12000 – High-grade copper
These materials provide excellent mechanical strength and corrosion resistance.
Sizes and Dimensions
| Nominal Size | Outer Diameter (mm) | Application |
|---|---|---|
| 1/4 inch | 6.35 | Instrumentation and refrigeration |
| 3/8 inch | 9.52 | HVAC and residential systems |
| 1/2 inch | 15.88 | Water supply and gas lines |
| 3/4 inch | 22.23 | Commercial plumbing |
| 1 inch and above | 28.58+ | Industrial applications |
Manufacturing Process
Copper tubing and fittings are produced using advanced manufacturing techniques:
- Melting and casting of copper billets
- Hot extrusion and cold drawing
- Annealing for flexibility
- Machining and forming of fittings
- Surface finishing and cleaning
- Quality inspection and testing
Applications of Copper Tubing and Fittings
HVAC and Refrigeration
- Air conditioning systems
- Refrigerant piping
Plumbing Systems
- Hot and cold water supply
- Potable water systems
Gas Distribution
- LPG and natural gas pipelines
- Industrial gas systems
Industrial Applications
- Oil and gas processing
- Power plants
- Marine piping systems
Medical Systems
- Medical gas pipelines
- Clean room installations
Why Choose Copper Tubing and Fittings?
Copper tubing and fittings offer unmatched performance, reliability, and versatility. Their ability to withstand harsh conditions while maintaining efficiency makes them a preferred choice for engineers and manufacturers.
Additionally, copper’s recyclability supports sustainable construction and industrial practices.
Quality Control and Testing
Manufacturers ensure product quality through rigorous testing:
- Hydrostatic pressure testing
- Eddy current testing
- Chemical composition analysis
- Dimensional inspection
These tests guarantee compliance with international standards and reliable performance.
Conclusion
Copper tubing and fittings are essential components of modern piping systems, offering durability, efficiency, and safety. Their wide range of applications and superior performance make them indispensable in industries worldwide.
Whether used in HVAC, plumbing, gas distribution, or industrial systems, copper tubing and fittings provide long-term reliability and efficiency, making them the preferred choice for critical infrastructure.
