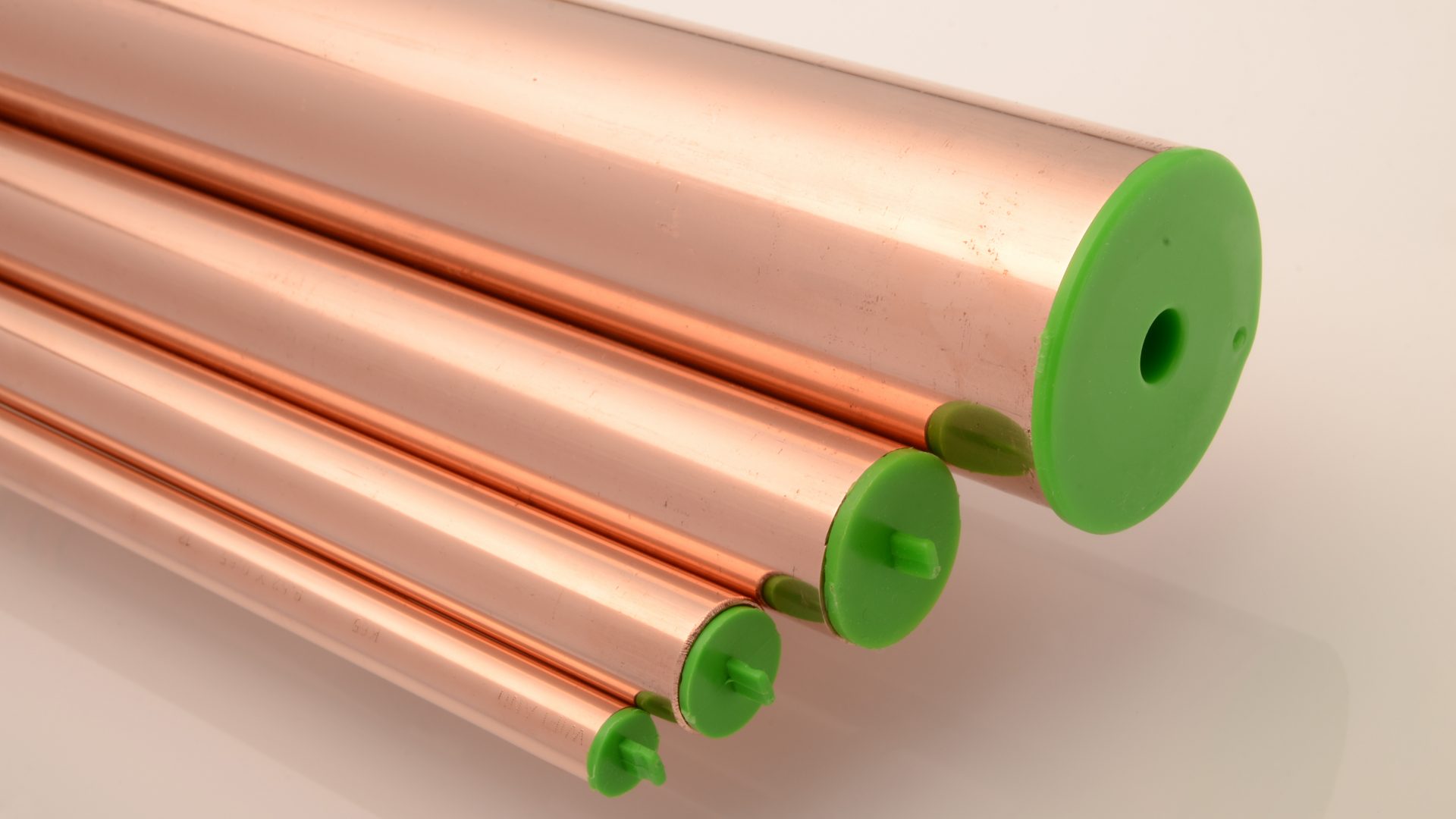

High Pressure Copper Pipe – Grades, Standards and Industrial Applications
High pressure copper pipe is engineered for applications where piping systems must safely withstand elevated internal pressures, temperature variations and demanding operating environments. Due to copper’s excellent mechanical strength, corrosion resistance and thermal conductivity, high pressure copper pipes are widely used in HVAC, refrigeration, gas distribution, power plants, refineries, marine systems and industrial utilities.
Manufactured to stringent international standards and subjected to rigorous quality control, high pressure copper pipes deliver long-term reliability and leak-free performance in safety-critical systems.
What Makes Copper Suitable for High Pressure Applications
Copper possesses a unique combination of properties that make it ideal for high pressure piping. Its high tensile strength, ductility and fatigue resistance allow it to handle internal pressure fluctuations without cracking or failure. Copper also maintains strength over a wide temperature range, making it suitable for both heating and cooling systems.
In addition, copper’s resistance to corrosion and permeability ensures long service life and safety in gas, refrigerant and fluid transport systems.
Common Grades Used for High Pressure Copper Pipe
High pressure copper pipes are typically manufactured from high-purity copper grades designed for pressure service:
- C12200 – Phosphorus Deoxidized Copper (DHP)
- C12000 – Low Residual Phosphorus Copper
These grades offer excellent weldability, brazability and resistance to hydrogen embrittlement, making them suitable for high pressure applications.
Standards Governing High Pressure Copper Pipe
High pressure copper pipe production and application are governed by internationally recognized standards that define dimensions, wall thickness, pressure ratings and testing requirements:
- ASTM B88 – Copper pipe for water and gas service (Type K, L)
- ASTM B280 – ACR copper tubing for high-pressure HVAC and refrigeration
- EN 1057 – Copper pipes for water and gas
- EN 12735 – Copper tubes for refrigeration
- IS 1545 / IS 2501 – Indian standards for copper pipes
- JIS H3300 – Japanese copper tubing standard
Wall Thickness and Pressure Ratings
Pressure capacity of copper pipes is directly related to wall thickness. For high pressure systems, thicker wall classifications are selected to provide additional safety margins.
| Pipe Type | Typical Application | Relative Pressure Capability |
|---|---|---|
| Type K | High pressure water, gas, underground service | Very High |
| Type L | HVAC, gas distribution, commercial plumbing | High |
| ASTM B280 ACR | Refrigeration and air conditioning | High (Refrigerant Rated) |
Design pressure must always be verified against applicable codes and safety standards.
Manufacturing Process for High Pressure Copper Pipes
High pressure copper pipes are manufactured using extrusion followed by multiple cold drawing stages to achieve precise wall thickness and mechanical strength. Controlled annealing restores ductility while maintaining pressure capability.
For HVAC and refrigeration applications, pipes are internally cleaned, dehydrated and sealed to prevent contamination and moisture ingress.
Joining Methods for High Pressure Copper Pipe
Brazing
Brazing is the preferred joining method for high pressure copper pipes, providing strong, leak-proof joints suitable for gas and refrigerant service.
Welding
In certain industrial applications, welding may be used where permitted by design codes and standards.
Mechanical Fittings
Flared or press-fit connections may be used in controlled environments, particularly in HVAC systems.
Applications of High Pressure Copper Pipe
HVAC & Refrigeration
- Split AC, VRF and VRV systems
- Chillers and heat pumps
- Industrial refrigeration
Gas Distribution
- LPG and natural gas pipelines
- Medical gas systems
- Laboratory gas networks
Power & Energy
- Power plant cooling systems
- Compressed air lines
- Utility piping
Industrial & Marine
- Hydraulic and control lines
- Refinery and process piping
- Marine cooling and utility systems
Advantages of High Pressure Copper Pipe
- Excellent pressure and temperature resistance
- High corrosion resistance
- Leak-tight and non-permeable
- Long service life with minimal maintenance
- Easy fabrication and installation
Quality Control and Testing
High pressure copper pipes undergo extensive quality control including chemical composition analysis, tensile testing, eddy current testing, dimensional inspection and hydrostatic pressure testing. Cleanliness levels are strictly controlled for gas and refrigeration service.
Compliance with international standards ensures consistent performance, safety and long-term reliability.
Conclusion
High pressure copper pipe is a trusted and proven solution for demanding applications where safety, durability and performance are critical. Its ability to withstand high internal pressures, resist corrosion and maintain integrity over long service periods makes copper the preferred material across HVAC, gas, power and industrial systems.
Manufactured to stringent global standards and supported by rigorous testing, high pressure copper pipes continue to support modern infrastructure and industrial operations worldwide.
