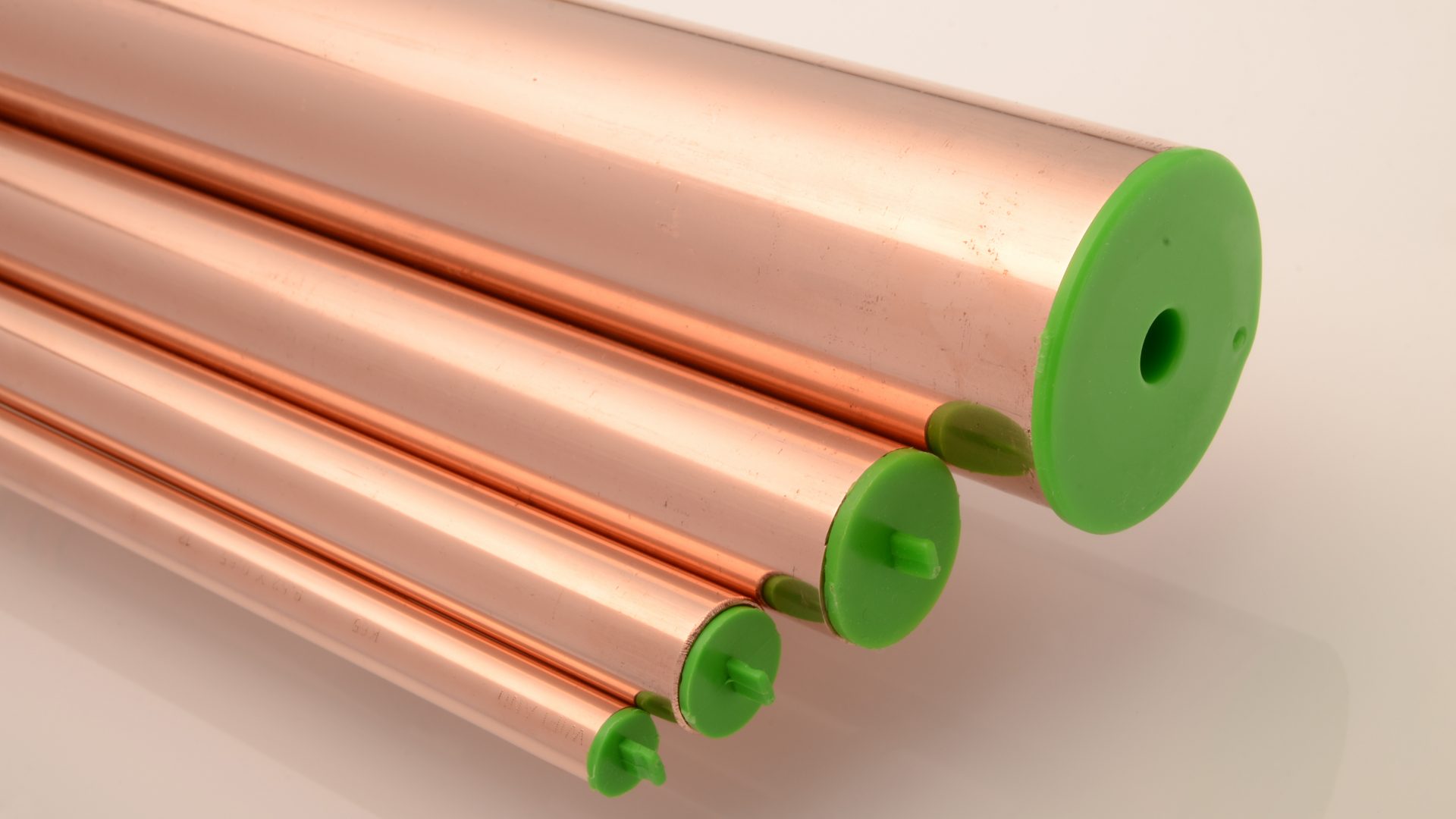

High Pressure Copper Tubing – Grades, Standards and Industrial Applications
High pressure copper tubing is specifically engineered for systems that operate under elevated internal pressures, temperature variations and demanding service conditions. Thanks to copper’s excellent mechanical strength, ductility, corrosion resistance and thermal conductivity, high pressure copper tubing is widely used across HVAC, refrigeration, gas distribution, power generation, refineries, marine installations and industrial utility systems.
Manufactured to stringent international standards and tested under rigorous quality control procedures, high pressure copper tubing ensures leak-free performance, safety and long-term reliability in critical applications.
Why Copper Tubing is Suitable for High Pressure Applications
Copper possesses a unique balance of strength and flexibility, allowing it to withstand high internal pressures without brittle failure. Its ability to absorb vibration and pressure fluctuations reduces the risk of fatigue cracking, which is critical in dynamic systems such as refrigeration and gas piping.
Additionally, copper maintains excellent mechanical properties across a wide temperature range, making it suitable for both high-temperature heating systems and low-temperature refrigeration applications.
Common Copper Grades for High Pressure Tubing
High pressure copper tubing is typically produced using high-purity copper grades optimized for pressure service:
- C12200 – Phosphorus Deoxidized Copper (DHP)
- C12000 – Low Residual Phosphorus Copper
These grades offer excellent resistance to corrosion, superior brazability and reliable performance under continuous pressure loading.
Standards Governing High Pressure Copper Tubing
High pressure copper tubing is manufactured and tested in accordance with internationally recognized standards that define dimensional tolerances, wall thickness, pressure ratings and inspection requirements:
- ASTM B88 – Copper tubing for water and gas service (Type K, Type L)
- ASTM B280 – ACR copper tubing for high-pressure HVAC and refrigeration
- EN 1057 – Copper tubes for water and gas
- EN 12735 – Copper tubes for refrigeration
- IS 1545 / IS 2501 – Indian standards for copper tubing
- JIS H3300 – Japanese copper tube specification
Wall Thickness and Pressure Capability
The pressure capacity of copper tubing is directly related to wall thickness and outside diameter. High pressure systems require thicker wall tubing to provide additional safety margins and long-term durability.
| Tubing Type | Typical Application | Relative Pressure Rating |
|---|---|---|
| Type K (ASTM B88) | High pressure water, gas, underground service | Very High |
| Type L (ASTM B88) | HVAC, gas distribution, commercial plumbing | High |
| ASTM B280 ACR | Refrigeration and air conditioning systems | High (Refrigerant Rated) |
Actual allowable working pressure must always be verified against applicable codes, temperatures and safety factors.
Manufacturing Process
High pressure copper tubing is produced through hot extrusion or piercing followed by multiple cold drawing operations to achieve precise dimensions and required mechanical properties. Controlled annealing restores ductility while maintaining strength for pressure applications.
For HVAC and refrigeration service, tubing is internally cleaned, dehydrated and nitrogen charged, with sealed ends to prevent contamination and moisture ingress.
Joining Methods for High Pressure Copper Tubing
Brazing
Brazing is the most commonly used joining method for high pressure copper tubing. It provides strong, leak-proof joints suitable for refrigerant, gas and industrial service.
Welding
In certain industrial and process applications, welding may be used where permitted by design codes and engineering standards.
Mechanical Connections
Flared and press-fit fittings are widely used in HVAC systems where controlled installation practices are followed.
Applications of High Pressure Copper Tubing
HVAC & Refrigeration
- Split AC, VRF and VRV systems
- Commercial chillers and heat pumps
- Industrial refrigeration plants
Gas Distribution
- LPG and natural gas piping
- Medical and laboratory gas systems
Power & Industrial Utilities
- Power plant cooling and utility lines
- Compressed air systems
- Hydraulic and control tubing
Marine & Process Industries
- Marine cooling and service piping
- Refinery and petrochemical process lines
Advantages of High Pressure Copper Tubing
- High pressure and temperature resistance
- Excellent corrosion resistance
- Leak-tight and non-permeable
- Long service life with minimal maintenance
- Ease of fabrication and installation
Quality Control and Testing
High pressure copper tubing undergoes extensive quality checks including chemical composition analysis, tensile testing, eddy current testing, dimensional inspection and hydrostatic pressure testing. Cleanliness levels are strictly controlled for gas and refrigeration applications.
Compliance with international standards ensures consistent performance, safety and reliability in demanding service conditions.
Conclusion
High pressure copper tubing is a proven and trusted solution for applications requiring superior strength, durability and safety. Its ability to withstand high internal pressures, resist corrosion and maintain performance over long service life makes copper tubing the preferred choice across HVAC, gas, power and industrial sectors.
Manufactured to stringent global standards and supported by rigorous testing, high pressure copper tubing continues to support critical infrastructure and industrial systems worldwide.
