Insulated Copper Pipes – Types, Standards and Industrial Applications

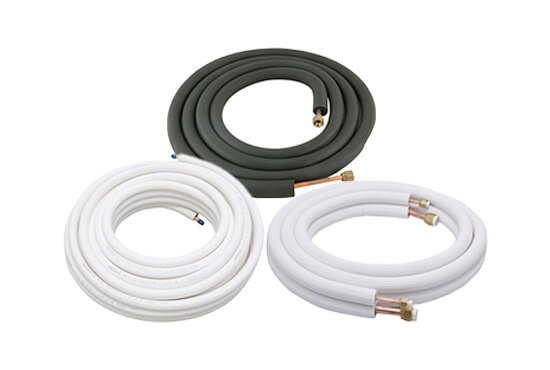

Insulated copper pipes are engineered piping solutions designed to deliver superior thermal efficiency, condensation control and long-term reliability in HVAC, refrigeration, plumbing, gas, medical and industrial systems. By integrating high-quality copper pipes with factory-applied insulation, these systems significantly reduce energy losses and enhance overall system performance.
Widely used in air-conditioning refrigerant lines, chilled water networks, heat pumps and industrial process piping, insulated copper pipes provide consistent insulation coverage, mechanical protection and faster installation compared to conventional site-insulated piping.
Importance of Insulated Copper Pipes
Copper pipes are valued for their excellent thermal conductivity, corrosion resistance and mechanical strength. However, in systems where temperature differentials exist, insulation becomes essential to prevent heat gain or loss, surface condensation and energy inefficiencies.
Insulated copper pipes maintain stable operating temperatures, protect surrounding structures from moisture damage and contribute to reduced operating costs across the system lifecycle.
Types of Insulation Used on Copper Pipes
Elastomeric Foam Insulation
Elastomeric insulation is the most widely used insulation for HVAC and refrigeration copper pipes. Its closed-cell structure prevents moisture ingress, making it highly effective in preventing condensation on cold lines.
Polyethylene (PE) Insulation
PE insulation offers lightweight and economical thermal protection, commonly used in residential and light commercial air-conditioning applications.
Cross-Linked Polyethylene (XLPE) Insulation
XLPE insulation provides enhanced thermal resistance, durability and dimensional stability, making it suitable for higher temperature and industrial environments.
Fiberglass Insulation
Fiberglass insulation is used in high-temperature industrial and power plant applications, typically combined with vapor barriers and protective jacketing.
Manufacturing Process
Copper pipes are manufactured through extrusion and cold drawing processes followed by annealing to achieve precise dimensions and mechanical properties. Once inspected and tested, insulation is applied using controlled extrusion or wrapping techniques to ensure uniform thickness and strong adhesion.
Factory insulation ensures consistent performance, eliminates installation variability and improves long-term durability compared to on-site insulation methods.
Applicable Standards
- ASTM B280 – ACR copper tubes for HVAC and refrigeration
- ASTM B88 – Copper pipes for plumbing and water systems
- EN 12735 – Copper tubes for refrigeration
- EN 1057 – Copper pipes for water and gas
- IS 1545 / IS 2501 – Indian copper pipe standards
- ASTM C534 / ASTM C547 – Insulation material standards
Sizes and Insulation Thickness
Insulated copper pipes are available in standard outer diameters ranging from 1/4 inch to 1-1/8 inch for HVAC applications, with larger diameters supplied for industrial and chilled water systems. Insulation thickness typically ranges from 6 mm to 25 mm depending on system design, ambient conditions and energy efficiency requirements.
Copper pipe wall thickness is selected based on pressure ratings, refrigerant type and operating temperature to ensure compliance with applicable safety codes.
Applications of Insulated Copper Pipes
HVAC & Refrigeration
- Split and VRF air-conditioning systems
- Chillers and cold storage facilities
- Heat pumps and refrigeration plants
Plumbing & Water Systems
- Chilled and hot water distribution
- Solar thermal piping
- Commercial water supply systems
Gas & Medical Systems
- Medical gas distribution lines
- Laboratory and specialty gas systems
Industrial & Power Applications
- Process piping with thermal control
- Power plant cooling circuits
- Refinery and chemical processing systems
Advantages of Factory-Insulated Copper Pipes
- Improved energy efficiency
- Effective condensation prevention
- Reduced installation time
- Consistent insulation quality
- Enhanced mechanical protection
Quality Control and Testing
Insulated copper pipes undergo comprehensive testing including dimensional inspection, eddy current testing, hydrostatic pressure testing and insulation adhesion verification. Cleanliness and moisture control are strictly maintained for refrigeration and medical applications.
Compliance with international standards ensures safe operation, durability and reliable performance under demanding service conditions.
Conclusion
Insulated copper pipes are an essential solution for modern HVAC, refrigeration and industrial piping systems where thermal efficiency, condensation control and long-term reliability are critical. By combining high-performance copper piping with factory-applied insulation, these systems deliver superior operational efficiency and reduced lifecycle costs.
Manufactured to stringent global standards and supplied in precise dimensions, insulated copper pipes continue to be the preferred choice for engineers, contractors and OEMs across residential, commercial and industrial infrastructure projects worldwide.
