Insulated Copper Tubing for HVAC, Plumbing and Industrial Systems
Insulated Copper Tubing is widely used in HVAC, refrigeration, plumbing and industrial piping systems where temperature control, energy efficiency and condensation prevention are critical. By combining high-quality copper tubing with factory-applied or site-installed insulation, these systems deliver reliable thermal performance and long service life across residential, commercial and industrial environments.
Copper’s excellent thermal conductivity makes it ideal for heat transfer applications. However, without insulation, copper tubing can cause excessive heat loss or unwanted heat gain. Insulated Copper Tubing addresses these challenges by maintaining stable fluid temperatures while protecting surrounding structures and equipment.
What is Insulated Copper Tubing?

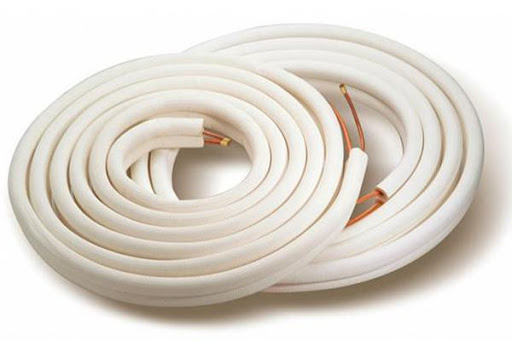

Insulated Copper Tubing consists of seamless copper tubes covered with a layer of thermal insulation. The insulation acts as a barrier that reduces heat transfer between the copper tube and the surrounding environment. Depending on the application, insulation may be applied during manufacturing or installed on-site.
This combination is especially important in systems carrying hot water, chilled water or refrigerants, where temperature stability directly affects system efficiency and performance.
Why Insulated Copper Tubing is Essential
In HVAC and plumbing systems, uninsulated copper tubing rapidly exchanges heat with ambient air. This results in higher energy consumption, reduced system efficiency and increased operating costs. Insulated Copper Tubing minimizes these losses and improves overall system reliability.
Additionally, insulation prevents condensation on cold copper surfaces, which can lead to corrosion, mold growth and damage to building finishes.
Key Benefits of Insulated Copper Tubing
- Reduces heat loss and heat gain
- Improves energy efficiency
- Prevents condensation and moisture damage
- Protects copper tubing from external corrosion
- Extends service life of piping systems
Insulation Materials Used with Insulated Copper Tubing
Elastomeric Rubber Insulation
Elastomeric rubber is one of the most commonly used insulation materials for Insulated Copper Tubing. Its closed-cell structure provides excellent thermal resistance and acts as a vapor barrier, preventing moisture ingress. It is widely used in HVAC and refrigeration applications.
Polyethylene (PE) Insulation
PE insulation is lightweight and cost-effective, making it suitable for residential plumbing and standard HVAC systems using Insulated Copper Tubing.
Cross-Linked Polyethylene (XLPE)
XLPE insulation offers enhanced thermal stability and mechanical strength. It is commonly specified for commercial and outdoor installations of Insulated Copper Tubing.
Fiberglass Insulation
Fiberglass insulation is used in high-temperature and industrial systems where Insulated Copper Tubing requires higher thermal resistance. It is usually supplied with a protective jacket.
Common Sizes of Insulated Copper Tubing
| Nominal Size (in) | Typical Application |
|---|---|
| 3/8 | HVAC refrigerant liquid lines |
| 1/2 | Refrigerant suction lines |
| 3/4 | Chilled water and hot water systems |
| 1 and above | Commercial and industrial piping |
Standards Applicable to Insulated Copper Tubing
Copper tubes used in Insulated Copper Tubing systems are manufactured according to international standards:
- ASTM B280 – ACR copper tubing for HVAC
- ASTM B88 – Copper tubing for water and gas
- EN 12735 – Refrigeration copper tubes
- EN 1057 – Copper pipes for water and gas
Insulation materials comply with standards such as ASTM C534, ASTM C547 and EN 14304.
Manufacturing Process of Insulated Copper Tubing
Copper tubing is produced through extrusion and cold drawing, followed by annealing to achieve precise dimensions and mechanical properties. For factory-applied Insulated Copper Tubing, insulation is applied under controlled conditions to ensure uniform thickness and strong adhesion.
Finished products are inspected for dimensional accuracy, insulation integrity and surface quality before dispatch.
Installation Best Practices for Insulated Copper Tubing
Proper installation is essential to achieve the full benefits of Insulated Copper Tubing. All joints and seams in the insulation should be sealed to maintain a continuous thermal barrier. Outdoor installations require UV-resistant protection to prevent insulation degradation.
Factory pre-insulated copper tubing significantly reduces installation time and minimizes the risk of insulation gaps.
Applications of Insulated Copper Tubing
HVAC & Refrigeration
- Split and inverter air conditioners
- VRF and VRV systems
- Commercial chillers
Plumbing & Hot Water Systems
- Domestic hot water distribution
- Solar water heating systems
Industrial Systems
- Process cooling and heating lines
- Power plant utility piping
Quality Control and Testing of Insulated Copper Tubing
Each length of Insulated Copper Tubing undergoes rigorous inspection including dimensional checks, insulation thickness verification and adhesion testing. Copper tubes are tested for chemical composition, tensile strength and pressure integrity.
Safety and Energy Efficiency
Using Insulated Copper Tubing improves workplace safety by reducing surface temperatures and preventing condensation-related hazards. It also contributes to compliance with energy efficiency codes and green building standards.
Conclusion
Insulated Copper Tubing is a critical component in modern HVAC, plumbing and industrial piping systems. By combining the proven performance of copper with effective thermal insulation, it delivers superior energy efficiency, reliability and long-term value.
Manufactured to international standards and installed using best practices, Insulated Copper Tubing continues to be the preferred solution for temperature-sensitive fluid transport across industries worldwide.
