Soldering Copper Plumbing
Soldering copper plumbing is a fundamental technique used in residential, commercial, and industrial water systems to create leak-proof and durable pipe connections. It involves joining copper pipes and fittings using a low-melting-point filler metal, ensuring a secure and long-lasting seal.
This method is widely adopted in plumbing installations due to its reliability, cost-effectiveness, and ease of execution. From potable water systems to HVAC pipelines, soldering copper plumbing remains a standard practice for professionals and manufacturers alike.
What is Soldering Copper Plumbing?
Soldering copper plumbing is a capillary joining process where heat is applied to copper pipes and fittings, allowing molten solder to flow into the joint. Once cooled, the solder forms a strong, leak-tight bond that ensures efficient fluid flow.
This technique is commonly used for water distribution systems, heating lines, and utility piping where moderate pressure and temperature conditions are present.
Principle of Soldering in Plumbing Systems
The process relies on capillary action, where molten solder is drawn into the gap between the pipe and fitting. Proper cleaning, flux application, and uniform heating are essential to achieve a high-quality joint.
A well-soldered joint ensures structural integrity, leak prevention, and long service life.
Tools Required for Soldering Copper Plumbing
- Pipe cutter for accurate cutting
- Deburring tool to remove sharp edges
- Emery cloth or wire brush for cleaning
- Flux to prevent oxidation
- Lead-free solder (mandatory for potable water)
- Propane or MAP gas torch
- Safety equipment (gloves, goggles)
Types of Solder Used
The choice of solder depends on system requirements:
- Lead-free solder: Essential for drinking water systems
- Silver-bearing solder: Provides enhanced strength
- Soft solder: Suitable for low-temperature applications
Compliance with health and safety standards is critical when selecting solder materials.
Step-by-Step Soldering Process
- Cut the Pipe: Ensure a clean, straight cut
- Deburr: Remove internal burrs for smooth flow
- Clean Surfaces: Remove oxidation and contaminants
- Apply Flux: Prevent oxidation during heating
- Assemble Joint: Insert pipe into fitting

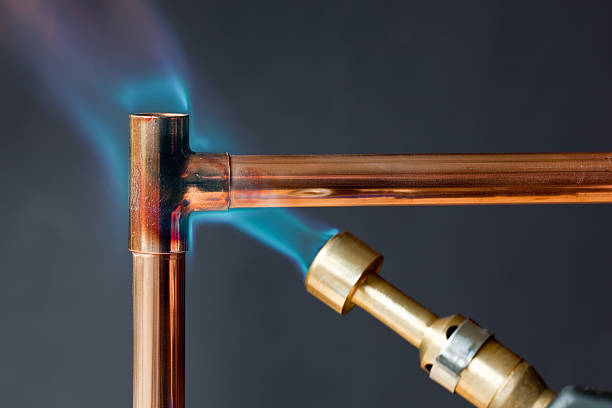

- Heat Joint: Apply uniform heat using a torch
- Apply Solder: Allow solder to flow into the joint
- Cool Naturally: Let the joint solidify without disturbance
Advantages of Soldering Copper Plumbing
- Reliable and leak-proof connections
- Cost-effective installation method
- Simple and widely accepted technique
- Suitable for a wide range of plumbing systems
- Long service life with minimal maintenance
Limitations of Soldering Copper Plumbing
- Not suitable for high-pressure systems
- Limited temperature resistance
- Requires skilled workmanship
- Not recommended for certain gas applications
Applications of Soldering Copper Plumbing
Residential Plumbing
- Hot and cold water supply systems
- Drinking water pipelines
Commercial Plumbing
- Hotels and office buildings
- Public water distribution systems
HVAC Systems
- Heating pipelines
- Chilled water systems
Industrial Utility Systems
- Process water lines
- Non-critical fluid transport
Standards and Compliance
Soldering copper plumbing must comply with:
- ASTM B828 – Capillary joint practices
- ASTM B32 – Solder metal specifications
- NSF/ANSI 61 – Drinking water system compliance
- Local plumbing codes and regulations
Safety Practices
Proper safety measures are essential:
- Ensure adequate ventilation
- Use protective gear
- Keep flammable materials away
- Use fire-resistant surfaces during soldering
Comparison: Soldering vs Brazing in Plumbing
| Parameter | Soldering | Brazing |
|---|---|---|
| Temperature | Below 450°C | Above 450°C |
| Strength | Moderate | High |
| Applications | Water systems | Gas & high-pressure systems |
| Filler Material | Soft solder | Silver-based alloys |
Inspection and Quality Control
After soldering, joints must be inspected:
- Visual inspection for uniform solder distribution
- Leak testing under pressure
- Verification of joint strength
Proper inspection ensures system safety and reliability.
Conclusion
Soldering copper plumbing remains a trusted and widely used method for creating reliable piping systems in water and HVAC applications. Its ease of use, affordability, and proven performance make it an essential technique in modern plumbing installations.
By following proper procedures, selecting appropriate materials, and adhering to industry standards, soldering copper plumbing ensures durable, leak-free, and efficient piping systems across residential, commercial, and industrial sectors.
