Soldering Copper Tube
Soldering copper tube is a widely adopted joining method used in plumbing, HVAC, refrigeration, and light industrial piping systems. It involves the use of a filler metal that melts at a lower temperature than copper to create a strong, leak-proof bond between tubes and fittings. This method is valued for its simplicity, cost efficiency, and long-term reliability.
Across residential, commercial, and industrial applications, soldering copper tube ensures secure connections for water distribution, heating systems, and utility pipelines operating under moderate pressure and temperature conditions.
What is Soldering Copper Tube?
Soldering copper tube is a capillary joining process where heat is applied to a copper tube and fitting assembly, allowing molten solder to flow into the joint. Once cooled, the solder solidifies and creates a tight, durable seal that prevents leakage.
This process is commonly used in water systems, HVAC pipelines, and low-pressure industrial applications.
Principle of Soldering
The process works on capillary action. When the tube and fitting are properly cleaned and heated, molten solder is drawn into the gap between them. This creates a continuous bond that ensures strength and leak-proof performance.
Uniform heating and proper preparation are essential to achieve high-quality joints.
Tools Required for Soldering Copper Tube
- Tube cutter for clean cuts
- Deburring tool to remove internal edges
- Emery cloth or cleaning brush
- Flux for oxidation prevention
- Lead-free solder
- Propane or MAP gas torch
- Safety gear (gloves, goggles)
Types of Solder Used
Different solder materials are used based on application:
- Lead-free solder: Required for potable water systems
- Silver-bearing solder: Offers improved strength and flow
- Soft solder: Suitable for low-temperature applications
Material selection should comply with regulatory and safety standards.
Step-by-Step Soldering Process
- Cut the Tube: Ensure a clean, square cut
- Deburr: Remove internal burrs
- Clean Surfaces: Remove oxidation and contaminants
- Apply Flux: Prepare surfaces for bonding
- Assemble Joint: Insert tube into fitting

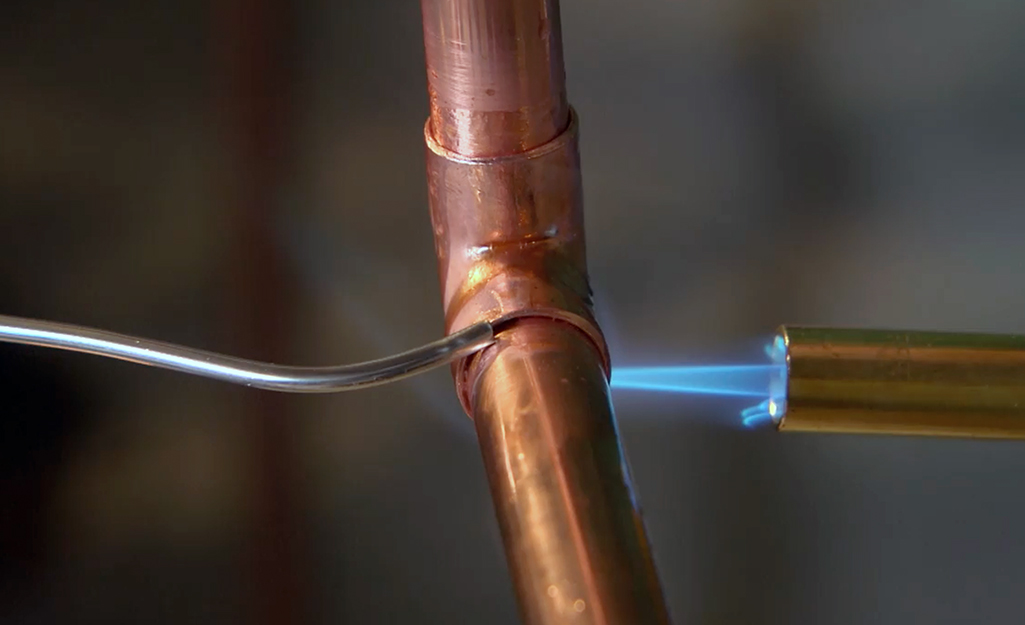

- Heat Joint: Apply even heat using a torch
- Apply Solder: Allow solder to flow into the joint
- Cool Naturally: Avoid disturbing the joint
Advantages of Soldering Copper Tube
- Cost-effective and efficient method
- Reliable leak-proof joints
- Easy installation process
- Minimal equipment required
- Suitable for various applications
Limitations of Soldering Copper Tube
- Not suitable for high-pressure systems
- Limited temperature resistance
- Requires proper preparation and skill
- Not recommended for certain gas applications
Applications of Soldering Copper Tube
Plumbing Systems
- Hot and cold water distribution
- Drinking water pipelines
HVAC Systems
- Heating and cooling systems
- Chilled water pipelines
Refrigeration Systems
- Low-pressure refrigerant lines
Industrial Utility Systems
- Process water piping
- Non-critical fluid transport
Standards and Compliance
Soldering copper tube must comply with:
- ASTM B828 – Capillary joint practices
- ASTM B32 – Solder metal specifications
- NSF/ANSI 61 – Drinking water compliance
- Local plumbing and building codes
Safety Considerations
Proper safety measures include:
- Ensuring proper ventilation
- Using protective equipment
- Keeping flammable materials away
- Handling tools carefully
Comparison: Soldering vs Brazing
| Parameter | Soldering | Brazing |
|---|---|---|
| Temperature | Below 450°C | Above 450°C |
| Strength | Moderate | High |
| Applications | Water systems | Gas & industrial systems |
| Filler Material | Soft solder | Silver alloys |
Quality Control and Inspection
Inspection of soldered joints includes:
- Visual inspection for uniform solder flow
- Leak testing under pressure
- Checking joint integrity
Proper quality control ensures long-term reliability.
Conclusion
Soldering copper tube is a proven and reliable method for joining copper piping systems in a wide range of applications. Its simplicity, efficiency, and cost-effectiveness make it an essential technique in plumbing and HVAC industries.
By following correct procedures, using appropriate materials, and adhering to industry standards, soldering copper tube ensures durable, leak-free, and efficient piping systems for long-term performance.
