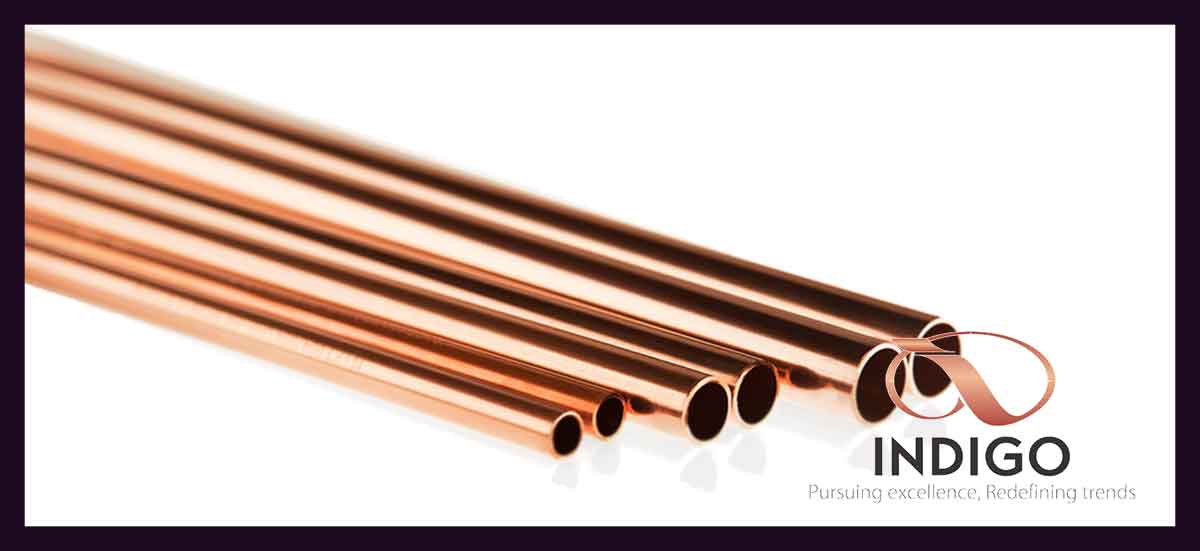

Standard Copper Tubing Sizes – OD, Wall Thickness and Applications
Standard copper tubing sizes are a critical reference for engineers, contractors and manufacturers involved in HVAC, plumbing, gas distribution, medical and industrial systems. Copper tubing is manufactured to standardized outside diameters (OD) and controlled wall thicknesses, ensuring compatibility with fittings, tools and installation practices across global markets.
Unlike steel piping, copper tubing is typically sized by its actual outside diameter rather than nominal pipe size. This dimensional consistency allows precise system design, reliable joining and predictable performance in pressure and temperature-sensitive applications.
How Standard Copper Tubing Sizes Are Defined
Standard copper tubing sizes are defined primarily by their outside diameter (OD) and wall thickness. The OD remains constant for a given size, while wall thickness varies depending on the standard and application, such as plumbing, refrigeration or medical gas service.
This sizing system ensures uniformity across fittings, brazing tools and insulation products, simplifying installation and maintenance.
Key Standards Governing Copper Tubing Sizes
- ASTM B88 – Copper tubing for water and gas service
- ASTM B280 – ACR copper tubing for HVAC and refrigeration
- EN 12735 – Copper tubes for refrigeration
- EN 1057 – Copper tubes for water and gas
- IS 1545 / IS 2501 – Indian copper tubing standards
- JIS H3300 – Japanese copper tube specification
Standard Copper Tubing Size Chart (Inch Series)
| Outside Diameter (in) | Outside Diameter (mm) | Typical Wall Thickness (mm) | Common Application |
|---|---|---|---|
| 1/4 | 6.35 | 0.80 | HVAC Refrigerant Lines |
| 3/8 | 9.52 | 0.80 | AC & Refrigeration |
| 1/2 | 12.70 | 0.90 | Plumbing & HVAC |
| 5/8 | 15.88 | 1.00 | AC & Heat Pumps |
| 3/4 | 19.05 | 1.10 | Water & Gas Lines |
| 1 | 25.40 | 1.20 | Industrial & Plumbing |
Metric Standard Copper Tubing Sizes
Metric copper tubing sizes are widely used in Europe, Asia and the Middle East. These sizes are specified directly by outside diameter in millimeters.
- 6 mm, 8 mm, 10 mm – Instrumentation and medical gas
- 12 mm, 15 mm, 18 mm – Plumbing and HVAC
- 22 mm, 28 mm – Water and heating systems
- 35 mm, 42 mm, 54 mm – Industrial and commercial piping
Wall Thickness Classes
Copper tubing wall thickness varies depending on application requirements and governing standards. Thicker walls provide higher pressure resistance and longer service life, while thinner walls offer flexibility and cost efficiency.
For example, ASTM B88 defines Type K, Type L and Type M tubing for plumbing, while ASTM B280 specifies wall thickness for ACR tubing used in HVAC systems.
Applications Based on Copper Tubing Sizes
HVAC & Refrigeration
- Split and VRF air-conditioning systems
- Chillers and heat pumps
- Refrigerant suction and liquid lines
Plumbing & Water Supply
- Hot and cold water distribution
- Solar water heating systems
- Commercial plumbing networks
Gas & Medical Systems
- LPG and natural gas piping
- Medical oxygen and vacuum lines
- Laboratory gas distribution
Industrial Applications
- Process piping and utilities
- Compressed air lines
- Instrumentation tubing
Importance of Selecting Correct Copper Tubing Size
Selecting the correct standard copper tubing size ensures optimal flow rates, pressure integrity and system efficiency. Incorrect sizing can lead to excessive pressure drop, vibration, noise and premature failure.
Adherence to standardized sizes also ensures compatibility with fittings, valves and insulation systems, reducing installation errors and maintenance costs.
Quality Control and Compliance
Copper tubing is manufactured under strict quality control including chemical composition analysis, dimensional inspection, eddy current testing and pressure testing. Compliance with international standards ensures consistent quality and safe operation across diverse applications.
Conclusion
Standard copper tubing sizes provide a globally recognized framework for designing and installing efficient, reliable and safe piping systems. Understanding outside diameter, wall thickness classifications and applicable standards is essential for HVAC, plumbing, gas and industrial applications.
Manufactured to stringent specifications and supported by rigorous testing, copper tubing continues to be the preferred solution for modern infrastructure and industrial piping systems worldwide.
