Tubing Copper – Complete Technical Guide, Sizes, Standards & Industrial Applications

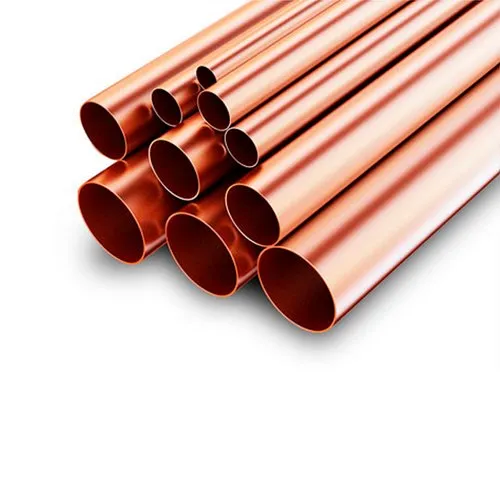

Tubing copper is one of the most trusted materials for conveying liquids and gases in modern engineering systems. Its widespread adoption across HVAC, refrigeration, plumbing, medical gas, power generation, marine, and industrial process plants is driven by a unique combination of high thermal conductivity, corrosion resistance, mechanical strength, formability, and long service life. From residential air conditioning to offshore platforms and chemical refineries, copper tubing continues to serve as a benchmark material for reliability and safety.

Unlike polymer-based alternatives, copper does not soften at elevated temperatures, does not become brittle with age, and does not release harmful compounds into potable water. Compared with carbon steel, it offers superior heat transfer efficiency, smoother internal surfaces, and reduced risk of scaling and fouling. These properties make tubing copper particularly suitable for high-performance heat transfer systems and hygienic applications.

Metallurgical and Physical Properties

Copper possesses excellent ductility, allowing it to be drawn into thin-walled tubes without compromising strength. Its high fatigue resistance enables it to withstand vibration and pressure cycling, which are common in refrigeration and gas distribution systems. The material also exhibits outstanding thermal conductivity, making it ideal for evaporators, condensers, and heat exchangers where rapid heat transfer is essential.

Another significant advantage is the natural antimicrobial behavior of copper surfaces. This property inhibits bacterial growth, making copper tubing a preferred choice for drinking water supply and medical gas pipelines in hospitals and laboratories. In addition, the formation of a stable oxide layer on internal surfaces provides long-term protection against general corrosion in most water chemistries.

Forms and Tempers of Copper Tubing

Hard Drawn Tubing

Supplied in straight lengths, hard drawn copper tubing offers high dimensional stability and is commonly used in building plumbing mains, fire sprinkler systems, industrial utilities, and gas distribution networks.

Soft Annealed Tubing

Supplied in coils, annealed tubing is flexible and can be bent easily, minimizing the number of joints and fittings. It is widely used in air-conditioning circuits, refrigeration lines, heat pumps, solar thermal systems, and medical gas installations.

ACR Grade Tubing (ASTM B280)

Air-conditioning and refrigeration grade tubing is manufactured with strict control of internal cleanliness and moisture content. This ensures compatibility with modern refrigerants and lubricants used in VRF, VRV, chillers, and cold storage systems.

International Standards and Codes

• ASTM B88 – Seamless copper water tube for plumbing and heating
• ASTM B280 – Tubing for air-conditioning and refrigeration service
• ASTM B75 / B251 – Tubes for heat exchangers and condensers
• EN 1057 – Copper tubes for water and gas installations
• EN 12735 – Tubes for refrigeration and air-conditioning
• JIS H3300 – Japanese standard for seamless copper tubes
• IS 1545 / IS 2501 – Indian standards for water supply and condenser tubes

These standards specify chemical composition, mechanical properties, dimensional tolerances, wall thickness classes, and pressure ratings, ensuring uniform quality and global interchangeability.

Sizes, Wall Thickness and Pressure Ratings

Copper tubing is available in diameters ranging from small capillary sizes of 4 mm to large industrial tubes exceeding 300 mm. Wall thickness is selected based on:

• Operating pressure
• Service temperature
• Type of fluid or gas
• Installation environment and safety factors

Thicker wall classes are specified for high-pressure refrigeration systems, hydraulic circuits, and industrial gas pipelines, while lighter gauges are suitable for low-pressure water and heating services.

Major Application Areas

HVAC and Refrigeration

Tubing copper is the backbone of air-conditioning and refrigeration systems, used in evaporators, condensers, liquid lines, suction lines, and heat pump circuits due to its heat transfer efficiency and pressure capability.

Plumbing and Hot Water Systems

Its corrosion resistance and hygienic properties make it ideal for potable water distribution, hot water circulation, solar water heating, and fire protection networks.

Gas Distribution

Copper tubing is widely approved for LPG, propane, and natural gas installations. Brazed and flared joints provide leak-tight connections with excellent resistance to vibration and thermal expansion.

Medical Gas and Laboratory Systems

High-purity copper tubing is used for oxygen, vacuum, medical air, nitrous oxide, and other critical gases in healthcare facilities and research laboratories.

Power, Process and Marine Industries

Applications include heat exchangers, condensers, cooling water circuits, hydraulic systems, and marine seawater lines where reliability and long-term corrosion resistance are essential.

Joining and Installation Techniques

Common joining methods include brazing, soldering, flaring, compression fittings, and press-fit systems. Brazing is preferred for high-pressure and refrigeration services, while press-fit technology is increasingly adopted in commercial plumbing due to speed of installation and consistent joint quality.

Insulation and Energy Efficiency

Elastomeric rubber, polyethylene foam, XLPE, and mineral wool insulation are used to reduce heat loss, prevent condensation, and improve system efficiency. Proper insulation is critical in HVAC, refrigeration, and hot water networks.

Quality Control and Testing

Manufacturing processes include extrusion, cold drawing, annealing, and precision finishing. Quality assurance involves chemical analysis, eddy current testing, dimensional inspection, and hydrostatic pressure testing to ensure compliance with international standards and long-term performance.

Conclusion

Tubing copper remains a cornerstone material for modern piping systems due to its unmatched combination of thermal performance, corrosion resistance, mechanical strength, fire safety, and sustainability. With full compliance to global standards and proven service life exceeding several decades, copper tubing continues to be the preferred choice for critical residential, commercial, and industrial applications worldwide.
